Technical Content
Part Image

NX20P0407UKZ - NXP

Description: Power Switch ICs - Power Distribution USB Type-C CC1/2, SBU1/2 Prot IC

Download NX20P0407UKZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

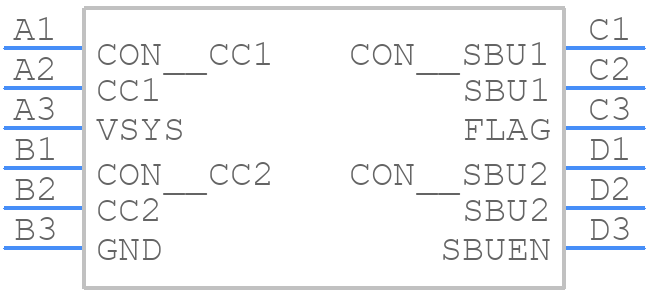

Symbol
NX20P0407UKZ - NXP - PCB symbol
click to zoom
PCB Footprints
NX20P0407UKZ - NXP PCB footprint - BGA - BGA - SOT1390-7 (WLCSP12)
click to zoom
3D Models
NX20P0407UKZ - NXP - 3D model - BGA - SOT1390-7 (WLCSP12)
click to zoom

NX20P0407UKZ Details

  • Manufacturer Part Number:

    NX20P0407UKZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    R-PBGA-B12

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    BGA12(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

NX20P0407UKZ Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NX20P0407UKZ is 1.71V to 3.6V.
  • The NX20P0407UKZ has an internal POR and BOD circuitry. The POR ensures that the device resets correctly during power-up, and the BOD detects voltage drops and resets the device if the voltage falls below a certain threshold.
  • The NX20P0407UKZ supports a maximum clock frequency of 40 MHz.
  • The NX20P0407UKZ has a 12-bit ADC with up to 12 channels. To use the ADC, configure the ADC clock, select the channel, and start the conversion. The ADC result can be read from the ADC data register.
  • Yes, the NX20P0407UKZ is designed for low-power applications. It has multiple power modes, including sleep and deep power-down modes, to minimize power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NX20P0407UKZ Overview

Use the download button to access the NX20P0407UKZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NX20P, or try a keyword search, such as Power Management Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
