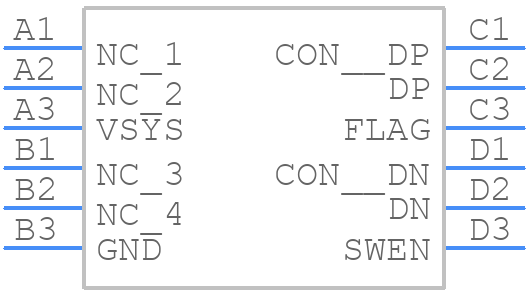

NX20P0408UK - NXP

NX20P0408UK Details

• Manufacturer Part Number:

  NX20P0408UK

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  WLCSP-12

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  8

• Adjustable Threshold:

  NO

• Analog IC - Other Type:

  USB PD PORT PROTECTOR

• JESD-30 Code:

  R-PBGA-B12

• Length:

  1.67 mm

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  12

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA12,3X4,16

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Seated Height-Max:

  0.565 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  2.5 V

• Supply Voltage-Nom (Vsup):

  3.6 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  BOTTOM

• Width:

  1.27 mm
