NX20P3483UKAZ - NXP

Description: USB Interface IC USB Sink & Source combo power switch

Download NX20P3483UKAZ Model

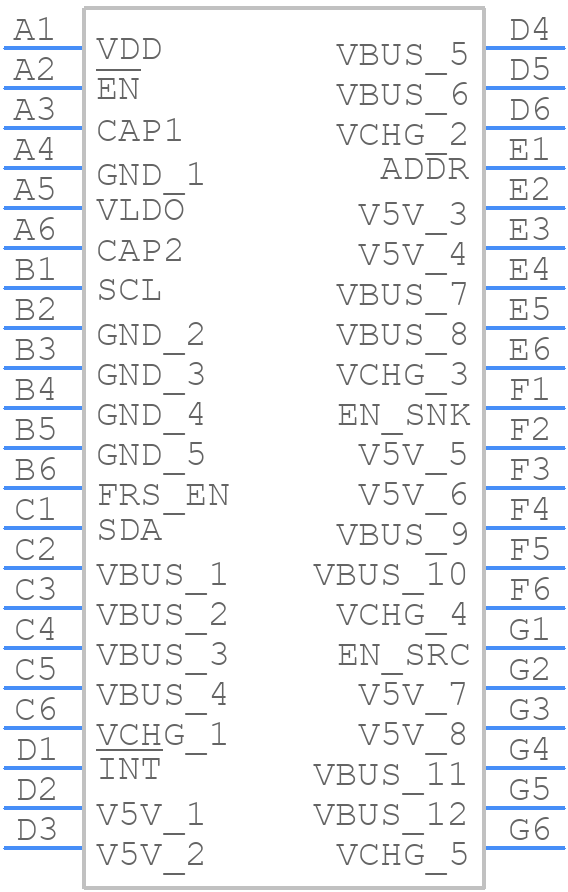

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NX20P3483UKAZ - NXP PCB footprint - BGA - BGA - WLCSP42
click to zoom
3D Models
NX20P3483UKAZ - NXP  - 3D model - BGA - WLCSP42
click to zoom

NX20P3483UKAZ Details

  • Manufacturer Part Number:

    NX20P3483UKAZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-42

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    23 Weeks

  • Date Of Intro:

    2018-10-29

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Additional Feature:

    Current Limit:3.4A;Thermal Shutdown:140C;Adjustable Current Limit

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-XBGA-B42

  • Length:

    2.91 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    42

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA42,6X7,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.565 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2.35V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.51 mm

NX20P3483UKAZ Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the NX20P3483UKAZ is 1.71V to 3.6V.
  • The NX20P3483UKAZ has an internal POR and BOD circuitry. The POR ensures that the device resets correctly during power-up, and the BOD detects voltage drops and resets the device if the voltage falls below a certain threshold.
  • The NX20P3483UKAZ supports a maximum clock frequency of 72 MHz.
  • To configure the NX20P3483UKAZ for low-power operation, use the power management unit (PMU) to control the power modes. The PMU allows you to adjust the clock frequency, voltage, and power gating to minimize power consumption.
  • The internal voltage regulator (IVR) in the NX20P3483UKAZ generates a stable internal voltage supply for the core and peripherals, allowing for a single external power supply voltage.
