The recommended operating voltage range for NX33A0010Q is 1.65V to 3.6V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 1.4V to 4.2V, but the performance may vary.
To ensure the stability of the output voltage, it's crucial to follow the recommended layout and decoupling guidelines provided in the datasheet. Additionally, using a high-quality output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value (e.g., 1uF to 10uF) can help maintain output voltage stability.
The maximum output current capability of NX33A0010Q is 1A, as specified in the datasheet. However, it's essential to consider the thermal and power dissipation limitations of the device when operating at high output currents.
Yes, NX33A0010Q is rated for operation up to 125°C (TJ). However, it's essential to consider the derating of the output current and power dissipation at higher temperatures to ensure reliable operation.
When selecting an output capacitor for NX33A0010Q, consider the following factors: capacitance value, ESR, voltage rating, and temperature coefficient. A general guideline is to use a capacitor with a capacitance value between 1uF to 10uF, an ESR of less than 1 ohm, and a voltage rating of at least 4V.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NX33A0010Q Overview

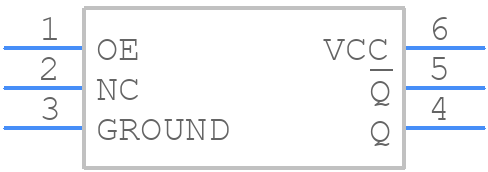

Use the download button to access the NX33A0010Q schematic symbol, PCB footprint, and 3D model.
