NX5P2924CUKZ - NXP

Description: NXP - NX5P2924CUKZ - POWER LOAD SWITCH, WLCSP-6

Download NX5P2924CUKZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

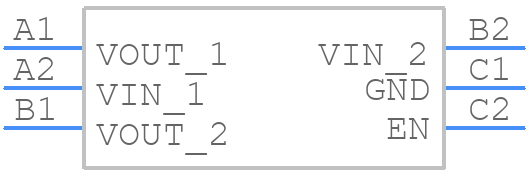

NX5P2924CUKZ - NXP - PCB symbol
click to zoom
PCB Footprints
NX5P2924CUKZ - NXP PCB footprint - BGA - BGA - WLCSP6*1
click to zoom
3D Models
NX5P2924CUKZ - NXP - 3D model - BGA - WLCSP6*1
click to zoom

NX5P2924CUKZ Details

  • Manufacturer Part Number:

    NX5P2924CUKZ

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • JESD-30 Code:

    R-PBGA-B6

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA6,2X3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    0.11 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

NX5P2924CUKZ Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the NX5P2924CUKZ is 1.65 V to 5.5 V.
  • To ensure correct configuration, apply a valid input signal to the device before powering it up, and ensure that the power supply ramps up slowly (typically within 1 ms).
  • The maximum frequency of operation for the NX5P2924CUKZ is 100 MHz.
  • To enter power-down mode, assert the PD pin low. In this mode, the device consumes minimal power, and all outputs are in a high-impedance state.
  • The OE pin is used to enable or disable the output buffers. When OE is low, the outputs are enabled; when OE is high, the outputs are in a high-impedance state.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NX5P2924CUKZ Overview

Use the download button to access the NX5P2924CUKZ schematic symbol, PCB footprint, and 3D model.
