Part Image

NX5P3090UK - NXP

Description: USB PD and type C current-limited power switch,supply voltage,2.5 V to 5.5 V,400 mA to 3.3 A,temperature,40 C to +85 C

Download NX5P3090UK Model

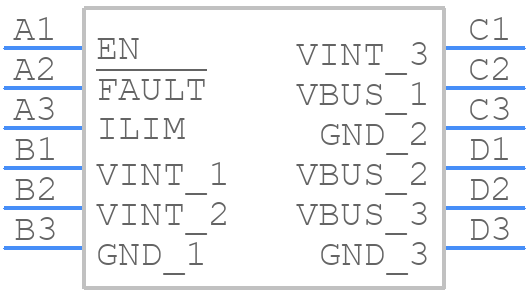

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NX5P3090UK - NXP PCB footprint - BGA - BGA - SOT1390-5
click to zoom
3D Models
NX5P3090UK - NXP  - 3D model - BGA - SOT1390-5
click to zoom

NX5P3090UK Details

  • Manufacturer Part Number:

    NX5P3090UK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    R-PBGA-B12

  • Length:

    1.65 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.565 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.35 mm

NX5P3090UK Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the NX5P3090UK. Ensure a solid ground plane, keep the input and output traces short and separate, and use a common mode filter to reduce EMI. Refer to the NXP application note AN11524 for more details.
  • The input capacitor value depends on the input voltage, output voltage, and desired ripple. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF. Consult the datasheet and application notes for specific guidance.
  • The maximum output current of the NX5P3090UK is 1A. However, it's essential to consider the thermal limitations and power dissipation when designing the system. Ensure proper heat sinking and thermal management to avoid overheating.
  • The NX5P3090UK has a built-in OVP feature. Connect a resistor divider network between the input voltage and the OVP pin to set the desired OVP threshold. Refer to the datasheet and application notes for specific implementation details.
  • The EN pin is used to enable or disable the regulator. Connect the EN pin to a logic high (e.g., VCC) to enable the regulator, and connect it to a logic low (e.g., GND) to disable it. This pin can be used to implement power sequencing or shutdown functionality.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NX5P3090UK Overview

Use the download button to access the NX5P3090UK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NX5P3, or try a keyword search, such as Power Management Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
