NX5P3363UKZ - NXP

Description: Power Switch ICs - Power Distribution 5V Type-C Load Switch

Download NX5P3363UKZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

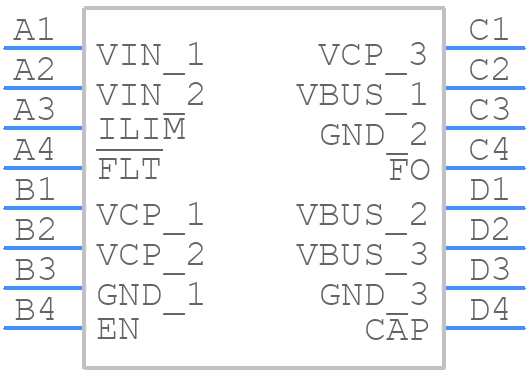

NX5P3363UKZ - NXP - PCB symbol
click to zoom
PCB Footprints
NX5P3363UKZ - NXP PCB footprint - BGA - BGA - SOT1394-3 (WLCSP16)+-
click to zoom
3D Models
NX5P3363UKZ - NXP - 3D model - BGA - SOT1394-3 (WLCSP16)+-
click to zoom

NX5P3363UKZ Details

  • Manufacturer Part Number:

    NX5P3363UKZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    21 Weeks

  • Date Of Intro:

    2018-08-02

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    13

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

NX5P3363UKZ Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the NX5P3363UKZ is 1.65 V to 5.5 V.
  • To ensure proper power-up and initialization, follow the power-up sequence outlined in the datasheet, and make sure to meet the recommended power-on reset timing requirements.
  • The maximum current rating for the NX5P3363UKZ is 100 mA per channel, with a total device current limit of 200 mA.
  • To configure the NX5P3363UKZ for high-speed operation, set the slew rate control pin (SR) to '0' and ensure the output load capacitance is within the recommended range.
  • Follow the recommended PCB layout and routing guidelines outlined in the datasheet, including keeping the input and output traces short and away from noise sources.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NX5P3363UKZ Overview

Use the download button to access the NX5P3363UKZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NX5P3, or try a keyword search, such as Power Management Circuits
