NXH350N100H4Q2F2PG - onsemi

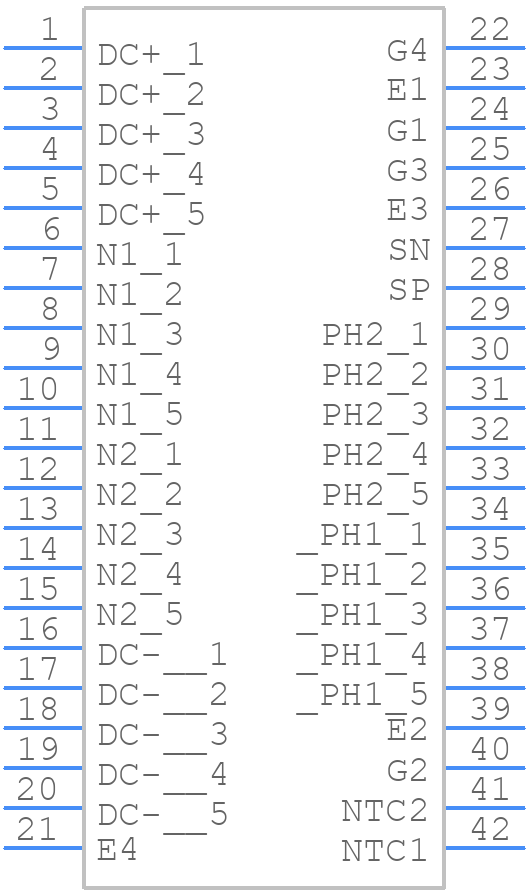

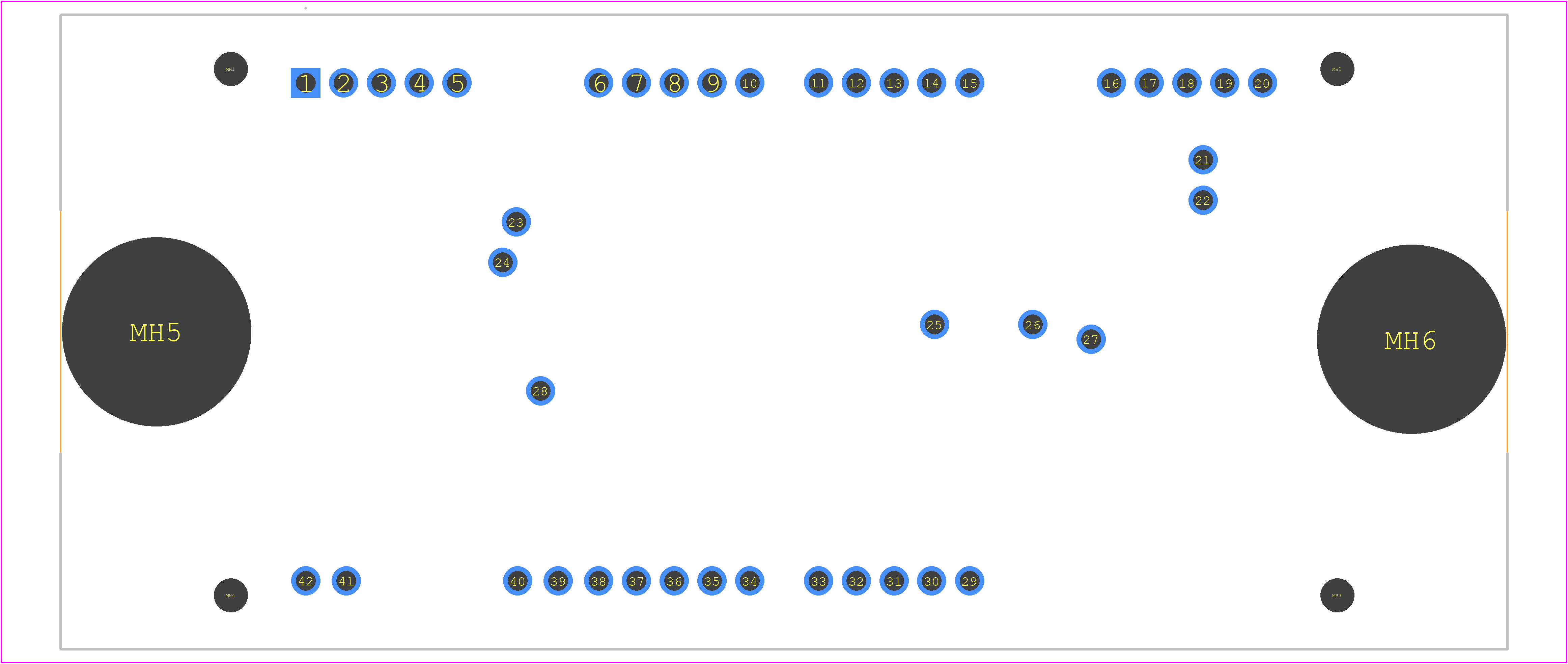

NXH350N100H4Q2F2PG Details

• Manufacturer Part Number:

  NXH350N100H4Q2F2PG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  Q2

• Manufacturer Package Code:

  180BH

• ECCN Code:

  EAR99

• Date Of Intro:

  2020-02-19

• Manufacturer:

  onsemi

• YTEOL:

  0

• Case Connection:

  ISOLATED

• Collector Current-Max (IC):

  329 A

• Collector-Emitter Voltage-Max:

  1000 V

• Configuration:

  2 BANKS, SERIES CONNECTED, CENTER TAPPED WITH BUILT-IN DIODE AND THERMISTOR

• Gate-Emitter Thr Voltage-Max:

  5.7 V

• Gate-Emitter Voltage-Max:

  20 V

• JESD-30 Code:

  R-XUFM-X42

• Number of Elements:

  2

• Number of Terminals:

  42

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Packing Method:

  TRAY

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  592 W

• Surface Mount:

  NO

• Terminal Form:

  UNSPECIFIED

• Terminal Position:

  UPPER

• Transistor Application:

  POWER CONTROL

• Transistor Element Material:

  SILICON

• Turn-off Time-Nom (toff):

  572.5 ns

• Turn-on Time-Nom (ton):

  114 ns

• VCEsat-Max:

  1.8 V
