A good PCB layout for optimal thermal performance would involve using a thermal pad on the bottom of the package, connecting it to a large copper area on the PCB, and using thermal vias to dissipate heat to the other side of the board. Additionally, keeping the PCB layers as thin as possible and using a high-thermal-conductivity material can help reduce thermal resistance.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 175°C. Proper thermal design, including a good heat sink and thermal interface material, can help keep the junction temperature within the recommended range. Additionally, derating the device's power dissipation at higher temperatures can help prevent overheating.
The NXH450N65L4Q2F2S1G has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding straps, and ionizers to minimize the risk of ESD damage. Additionally, it's recommended to use ESD protection devices, such as TVS diodes, on the input and output pins to provide additional protection.
The NXH450N65L4Q2F2S1G is an AEC-Q101 qualified device, making it suitable for automotive applications. However, for high-reliability applications, it's essential to follow the recommended operating conditions, perform thorough testing and validation, and consider using additional safety features, such as redundancy or error detection, to ensure the system's overall reliability.
When selecting a gate driver for the NXH450N65L4Q2F2S1G, consider the device's gate charge requirements, the desired switching frequency, and the power supply voltage. A gate driver with a high current capability, fast rise and fall times, and a suitable input voltage range is recommended. Additionally, consider the gate driver's ability to provide isolation, if required, and its compatibility with the system's logic voltage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NXH450N65L4Q2F2S1G Overview

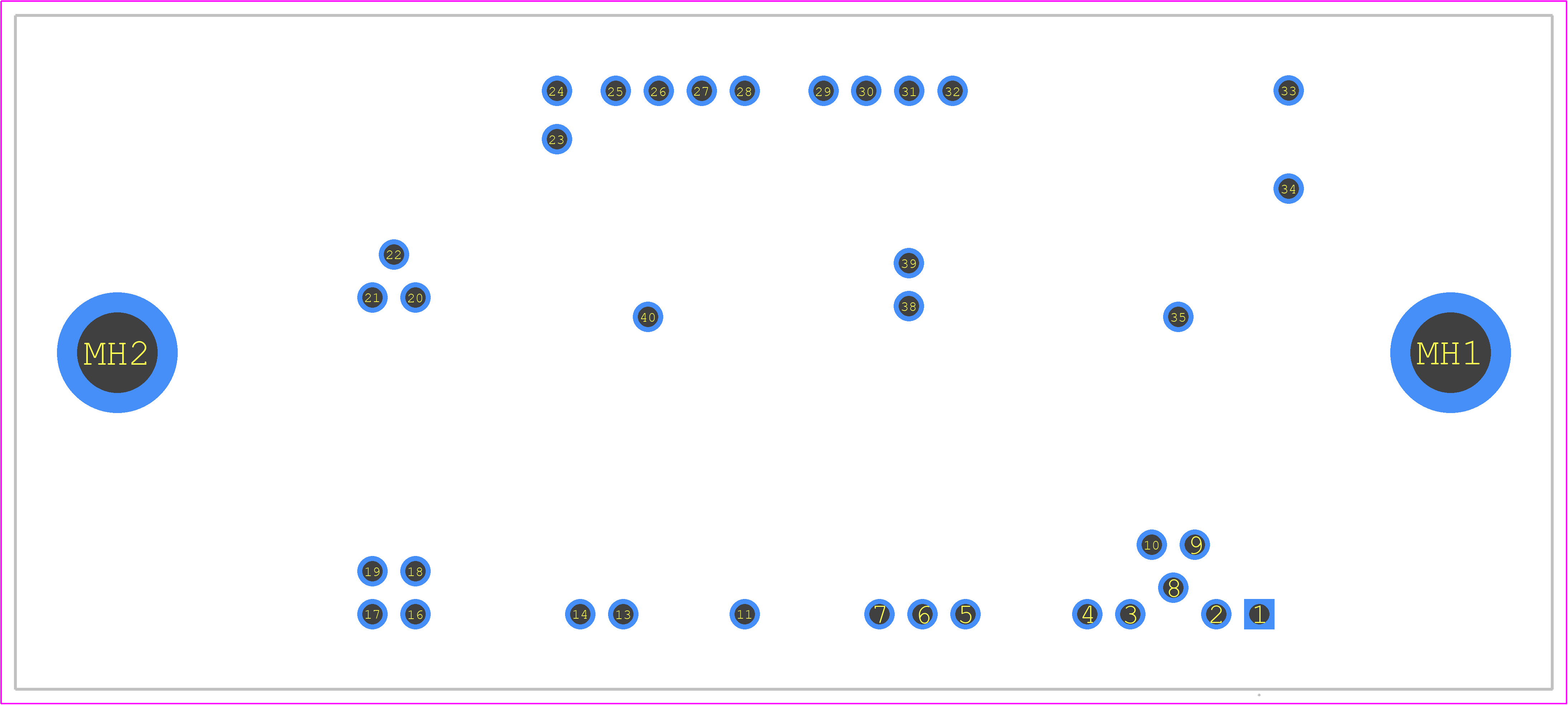

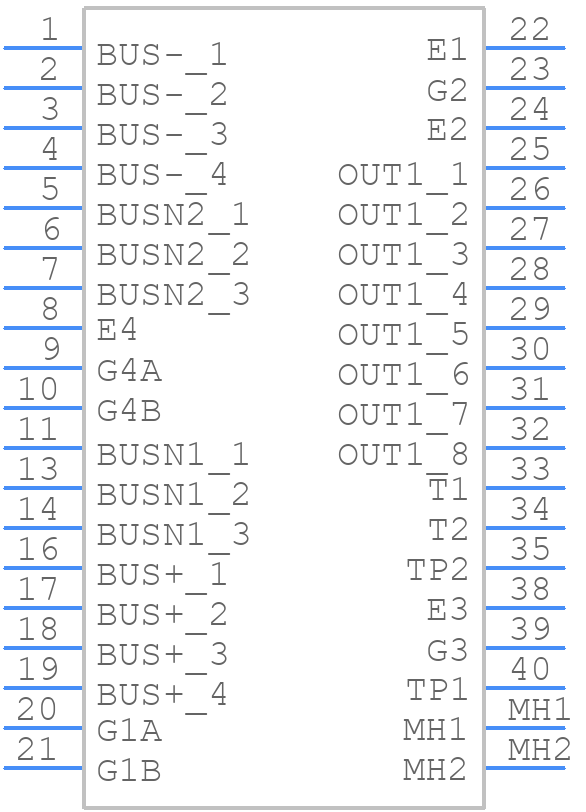

Use the download button to access the NXH450N65L4Q2F2S1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NXH45,
or try a keyword search, such as IGBTs
