NXH600N105L7F5P2HG - onsemi

Description: IGBT Module, I-type NPC 1050 V, 600 A IGBT

Download NXH600N105L7F5P2HG Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NXH600N105L7F5P2HG model

Email notifications will be applied after download.

Send part feedback

Symbol

NXH600N105L7F5P2HG - onsemi - PCB symbol

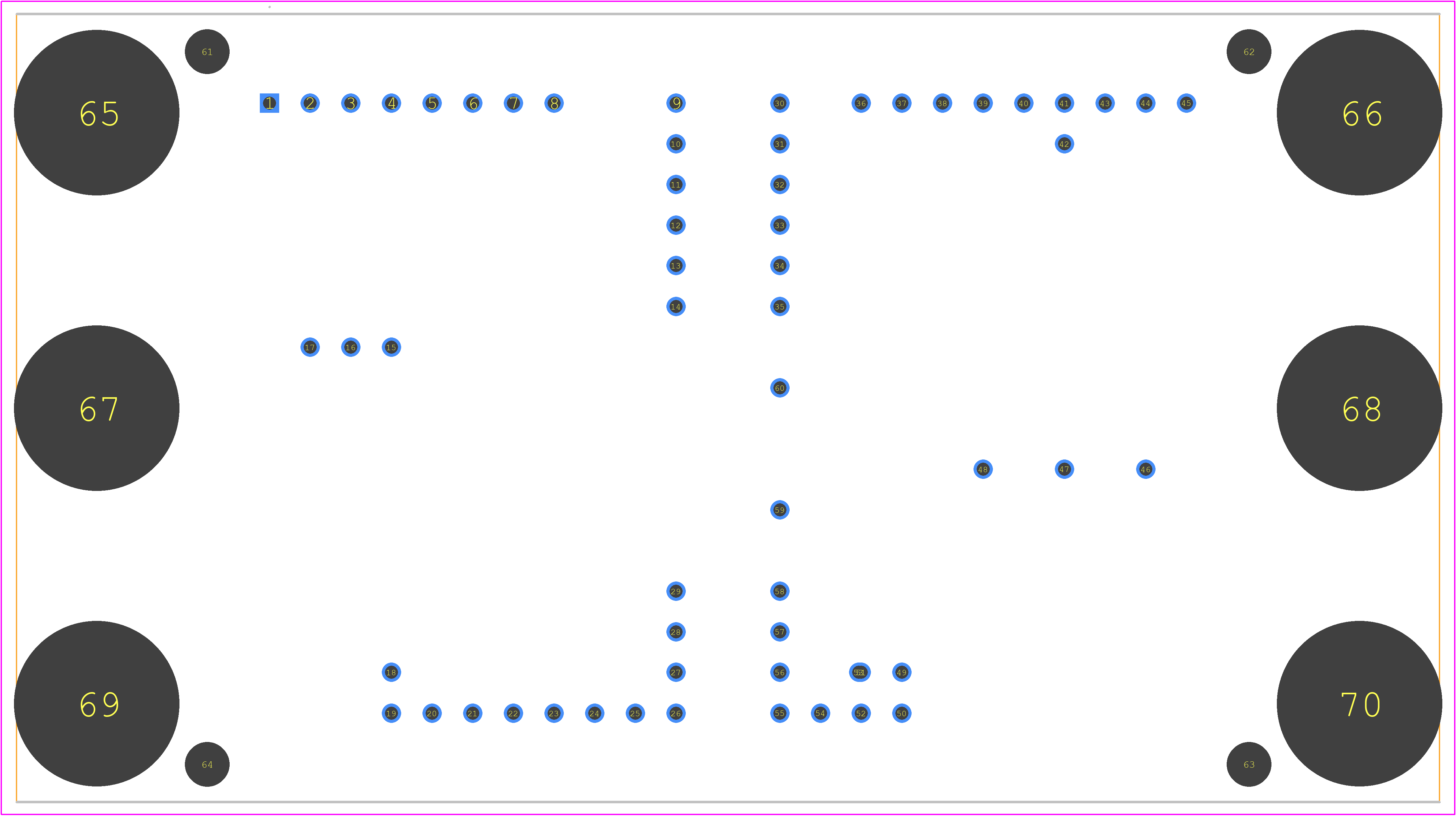

PCB Footprints

NXH600N105L7F5P2HG - onsemi PCB footprint - Other - Other - PIM60 112.00x62.00x12.00 CASE 180HY ISSUE O_2024

3D Models

NXH600N105L7F5P2HG - onsemi - 3D model - Other - PIM60 112.00x62.00x12.00 CASE 180HY ISSUE O_2024

Datasheet Download Datasheet
Stock & Prices Price & Stock for NXH600N105L7F5P2HG
Part Number NXH600N105L7F5P2HG
Manufacturer onsemi
Pin Count 60
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PIM60 112.00x62.00x12.00 CASE 180HY ISSUE O_2024
Released Date Sep 22, 2024
Last Modified Date Jul 23, 2025 12:29 PM UTC
Pinout / Pin List Click Here (Member Only)

NXH600N105L7F5P2HG Details

Manufacturer Part Number:
NXH600N105L7F5P2HG
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
onsemi

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

NXH600N105L7F5P2HG Overview

Use the download button to access the NXH600N105L7F5P2HG schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NXH60, or try a keyword search, such as IGBTs
