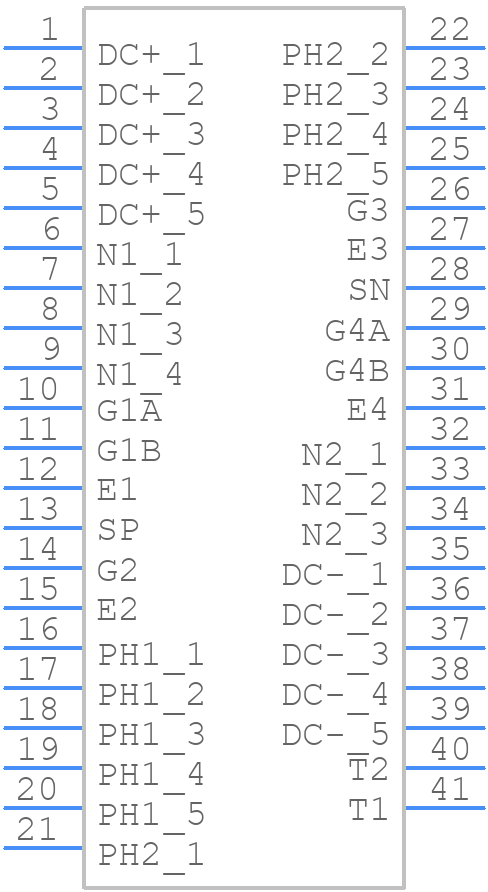

NXH600N65L4Q2F2PG Details

• Manufacturer Part Number:

  NXH600N65L4Q2F2PG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

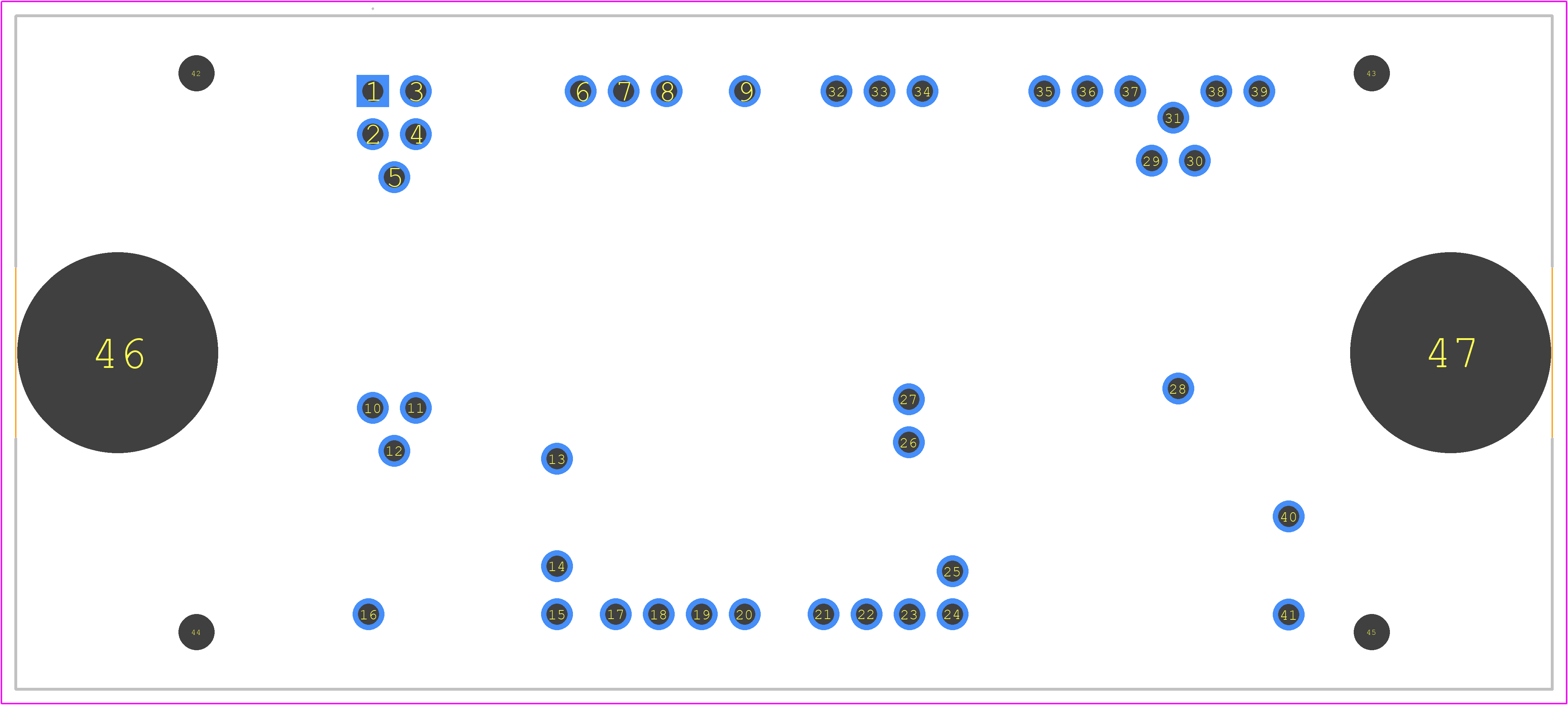

  PIM41, 93x47 (PRESS FIT)

• Manufacturer Package Code:

  180HD

• ECCN Code:

  EAR99

• Manufacturer:

  onsemi

• YTEOL:

  5.35

• Case Connection:

  ISOLATED

• Collector Current-Max (IC):

  483 A

• Collector-Emitter Voltage-Max:

  650 V

• Configuration:

  SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

• Gate-Emitter Thr Voltage-Max:

  5.2 V

• Gate-Emitter Voltage-Max:

  20 V

• JESD-30 Code:

  R-XUFM-X41

• JESD-609 Code:

  e3

• Number of Elements:

  4

• Number of Terminals:

  41

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  931 W

• Surface Mount:

  NO

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  UNSPECIFIED

• Terminal Position:

  UPPER

• Transistor Application:

  POWER CONTROL

• Transistor Element Material:

  SILICON

• Turn-off Time-Nom (toff):

  732.05 ns

• Turn-on Time-Nom (ton):

  199.45 ns

• VCEsat-Max:

  2.2 V
