NXH800H120L7QDSG - onsemi

Description: Solderable Pins; Low Inductive Layout; Field Stop Trench 7 IGBTs & Gen.7 Diodes; 1200 V, 800 A 2 in 1 Half Bridge Configuration IGBT Power Module; Isolated Base Plate; NTC Thermistor

Download NXH800H120L7QDSG Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NXH800H120L7QDSG model

Email notifications will be applied after download.

Send part feedback

Symbol

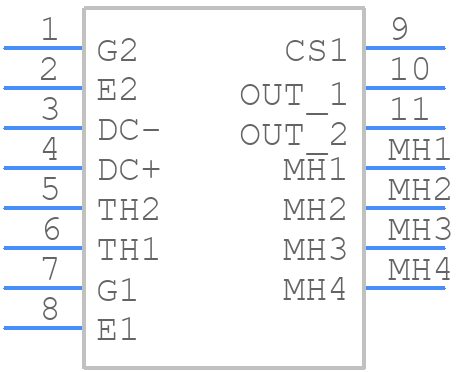

NXH800H120L7QDSG - onsemi - PCB symbol

PCB Footprints

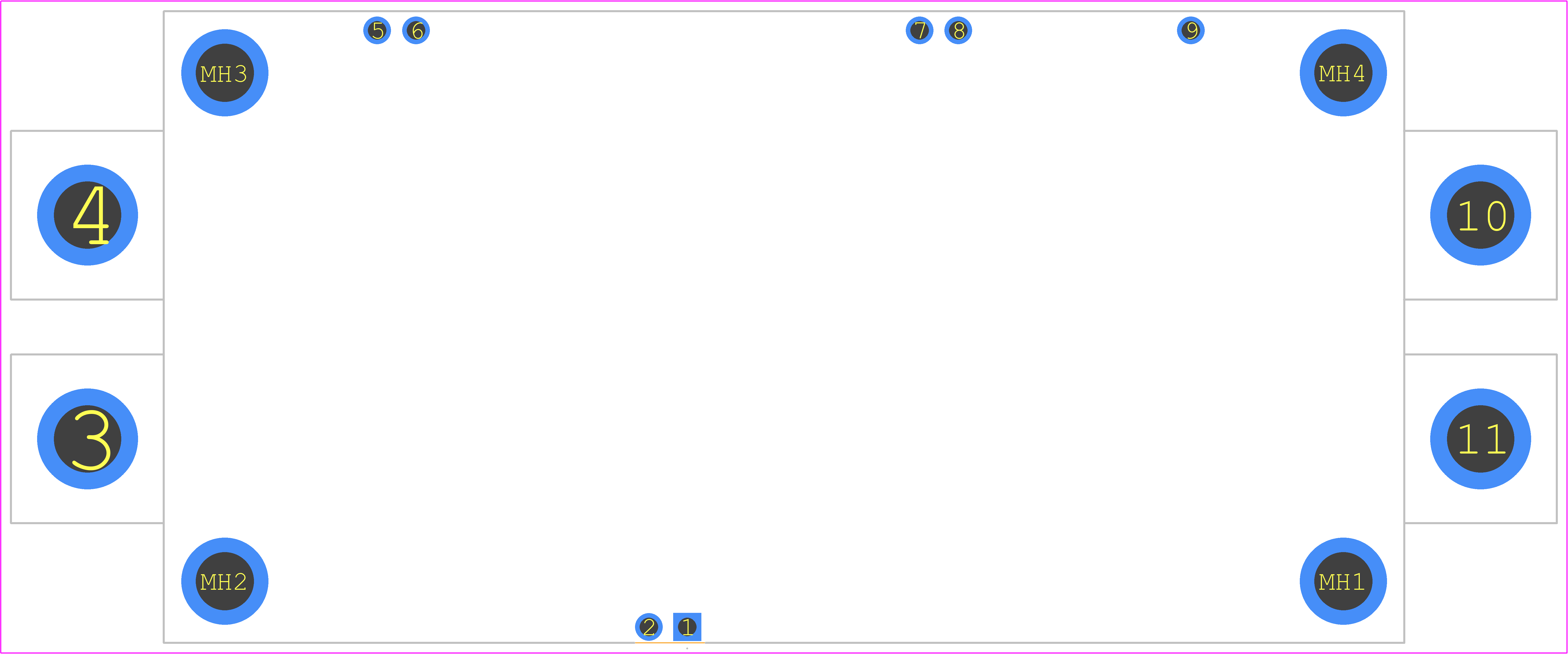

NXH800H120L7QDSG - onsemi PCB footprint - Other - Other - PIM11, 152.00x62.15x20.80 CASE 180HT_

3D Models

NXH800H120L7QDSG - onsemi - 3D model - Other - PIM11, 152.00x62.15x20.80 CASE 180HT_

Datasheet Download Datasheet
Stock & Prices Price & Stock for NXH800H120L7QDSG
Part Number NXH800H120L7QDSG
Manufacturer onsemi
Pin Count 15
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PIM11, 152.00x62.15x20.80 CASE 180HT_
Released Date Feb 26, 2024
Last Modified Date Jan 22, 2025 4:53 PM UTC
Pinout / Pin List Click Here (Member Only)

NXH800H120L7QDSG Details

Manufacturer Part Number:
NXH800H120L7QDSG
Brand Name:
onsemi
Pbfree Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
PIM11, 152.00x62.15x17.00
Manufacturer Package Code:
180HT
ECCN Code:
EAR99
Factory Lead Time:
10 Weeks
Manufacturer:
onsemi

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

NXH800H120L7QDSG Overview

Use the download button to access the NXH800H120L7QDSG schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NXH80, or try a keyword search, such as IGBTs
