NXH80T120L3Q0S3TG - onsemi

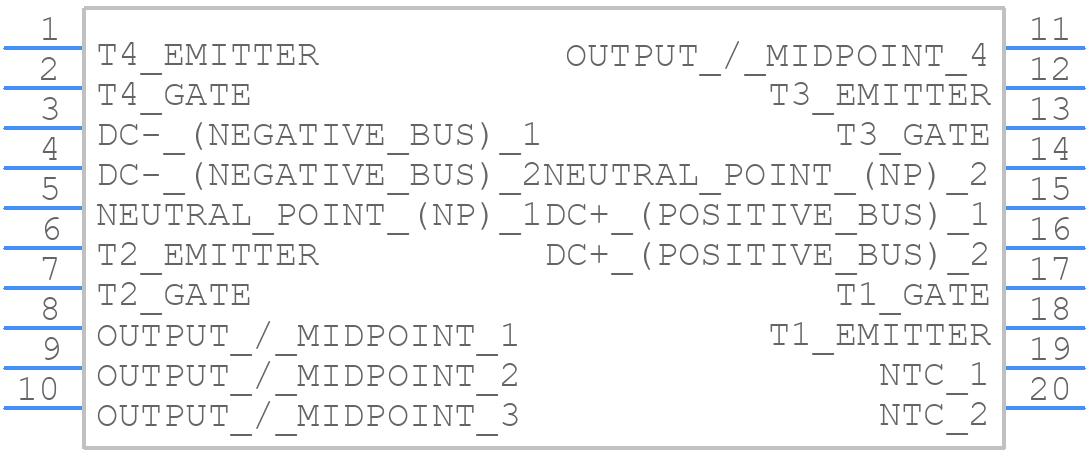

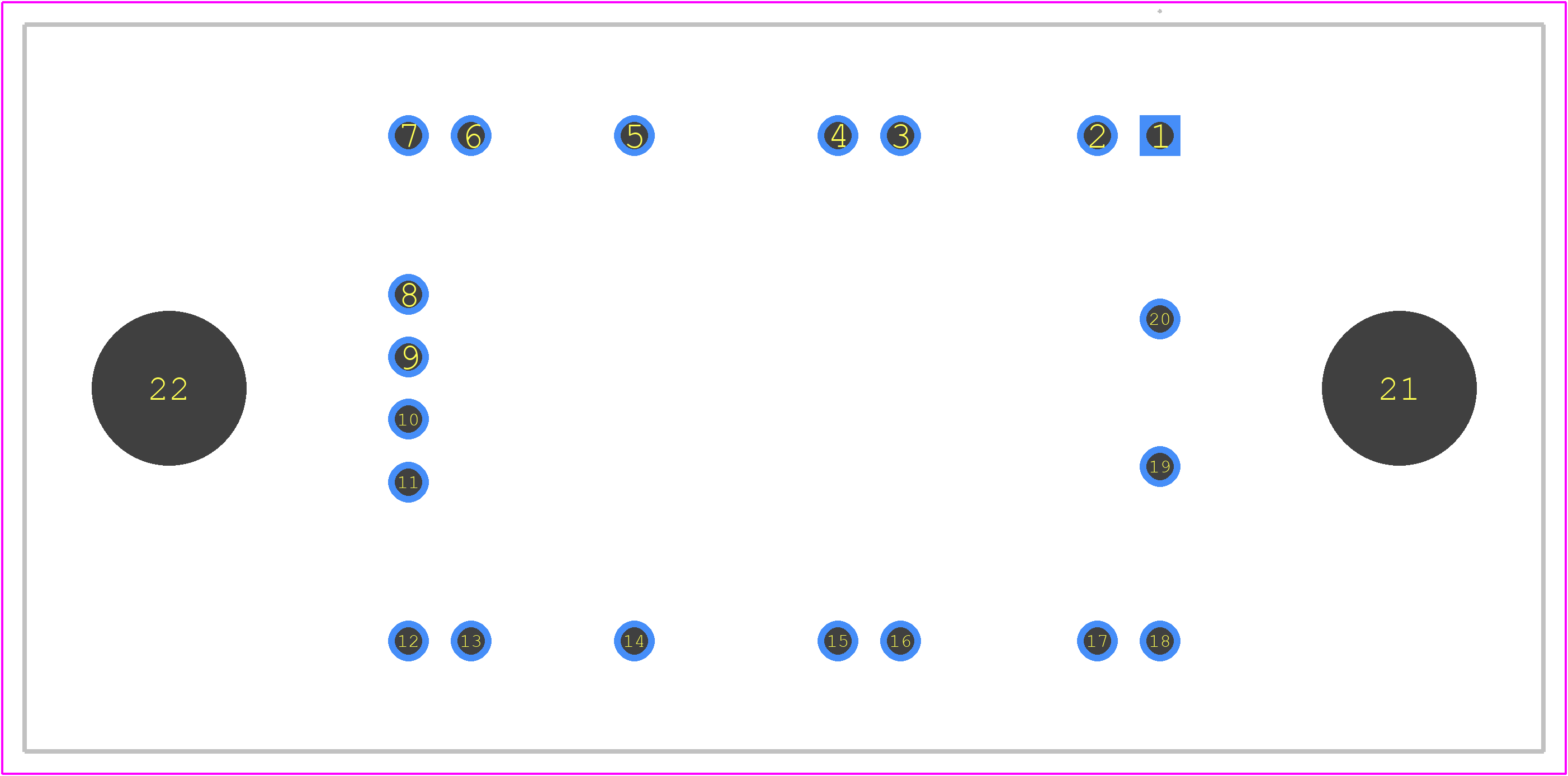

NXH80T120L3Q0S3TG Details

• Manufacturer Part Number:

  NXH80T120L3Q0S3TG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  Q0

• Manufacturer Package Code:

  180AB

• ECCN Code:

  EAR99

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  3

• Case Connection:

  ISOLATED

• Collector Current-Max (IC):

  75 A

• Collector-Emitter Voltage-Max:

  1200 V

• Configuration:

  BRIDGE, 4 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

• Gate-Emitter Thr Voltage-Max:

  6.5 V

• Gate-Emitter Voltage-Max:

  20 V

• JESD-30 Code:

  R-XUFM-X20

• Number of Elements:

  4

• Number of Terminals:

  20

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  188 W

• Surface Mount:

  NO

• Terminal Form:

  UNSPECIFIED

• Terminal Position:

  UPPER

• Transistor Application:

  POWER CONTROL

• Transistor Element Material:

  SILICON

• Turn-off Time-Nom (toff):

  750 ns

• Turn-on Time-Nom (ton):

  98 ns

• VCEsat-Max:

  2.4 V
