NXQ1TXH5 - Nexperia

Description: One-chip 5 V Qi wireless transmitter, QFN-32

Download NXQ1TXH5 Model

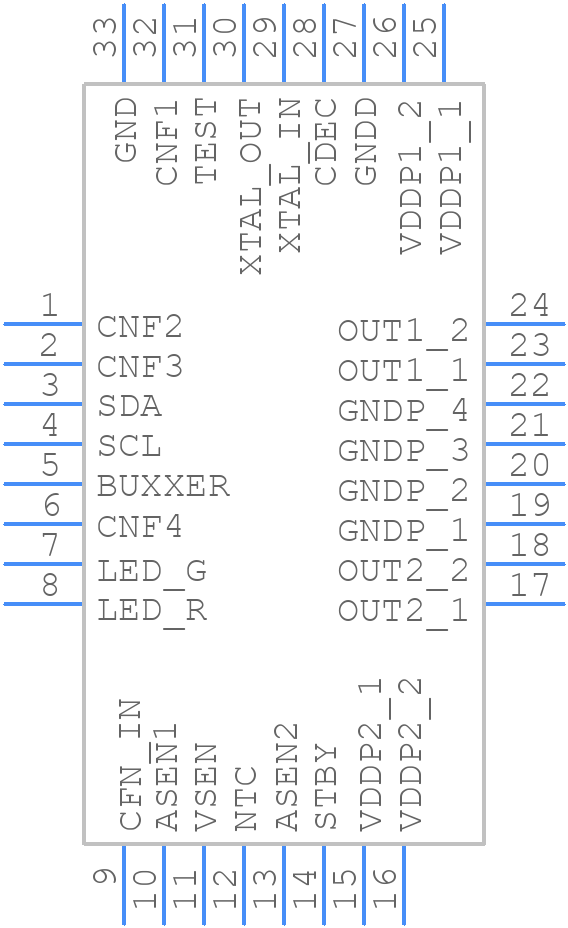

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NXQ1TXH5 - Nexperia PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN32_1
click to zoom
3D Models
NXQ1TXH5 - Nexperia  - 3D model - Quad Flat No-Lead - HVQFN32_1
click to zoom
  • Datasheet
  • Stock & Prices $ Price & Stock for NXQ1TXH5
  • Part Number NXQ1TXH5
  • Manufacturer Nexperia
  • Pin Count 33
  • Part Category Integrated Circuit
  • Package Category Quad Flat No-Lead
  • Footprint Name Quad Flat No-Lead - HVQFN32_1
  • Released Date Jan 23, 2017
  • Last Modified Date Mar 7, 2023 4:10 PM UTC
  • Pinout / Pin List Click Here (Member Only)
