OCVPB21-13F6 - STMicroelectronics

Description: ESD, overvoltage and overcurrent protection with charging orientation direction detection for wearables and IoT

Download OCVPB21-13F6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

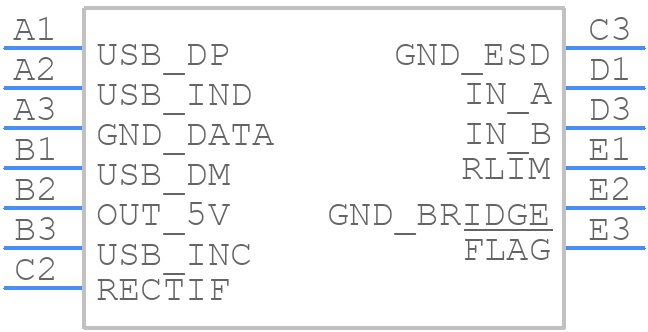

OCVPB21-13F6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
OCVPB21-13F6 - STMicroelectronics PCB footprint - BGA - BGA - WLCSP13
click to zoom
3D Models
OCVPB21-13F6 - STMicroelectronics - 3D model - BGA - WLCSP13
click to zoom

OCVPB21-13F6 Details

  • Manufacturer Part Number:

    OCVPB21-13F6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-13

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PBGA-B13

  • JESD-609 Code:

    e1

  • Length:

    2.1 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    13

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA13,3X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.66 mm

  • Supply Voltage-Max (Vsup):

    5.55 V

  • Supply Voltage-Min (Vsup):

    4.25 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.32 mm

OCVPB21-13F6 Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and consider derating the device's power dissipation according to the ambient temperature.
  • Although the datasheet doesn't specify a maximum allowed voltage on the input pins, it's generally recommended to limit the input voltage to 5.5V to prevent damage to the device.
  • Yes, the OCVPB21-13F6 can be used in switching regulator applications, but it's essential to ensure that the device is properly bypassed and decoupled to prevent oscillations and noise issues.
  • To troubleshoot oscillations or instability issues, check the PCB layout for proper decoupling and bypassing, ensure that the input and output capacitors are of suitable values and types, and verify that the device is operated within its recommended operating conditions.
