ODD62M4R70T2C footprint, schematic symbol and 3D model by Positronic

Symbol

click to zoom

PCB Footprints

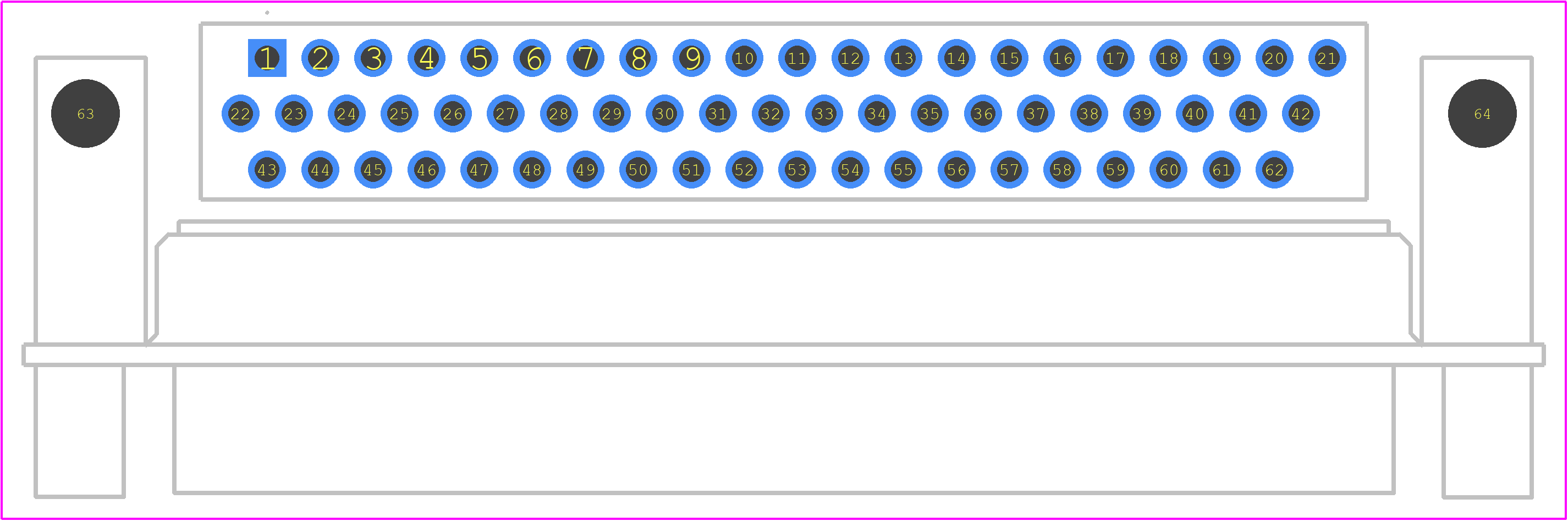

ODD62M4R70T2C - Positronic PCB footprint - Other - Other - ODD62M4R70T2C-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ODD62M4R70T2C
Part Number ODD62M4R70T2C
Manufacturer Positronic
Pin Count 62
Part Category Connector
Package Category Other
Footprint Name Other - ODD62M4R70T2C-2
Released Date Apr 19, 2025
Last Modified Date Apr 19, 2025 3:09 PM UTC
Pinout / Pin List Click Here (Member Only)

ODD62M4R70T2C Details

Manufacturer Part Number:
ODD62M4R70T2C
Manufacturer:
Amphenol Positronic

Trust Checks

Community Provided

System Verified

Community Approved

ODD62M4R70T2C Overview

Use the download button to access the ODD62M4R70T2C schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ODD62, or try a keyword search, such as D Type Connectors

About Positronic

Positronic is a global manufacturer of high-reliability electronic connectors serving customers in a variety of industries, including aerospace, defense, industrial, and medical. Positronic's products include rectangular connectors, circular connectors, D-subminiature connectors, and power & hybrid connectors. The company also offers customized solutions for customers with unique needs. Its connectors are designed to meet demanding requirements for reliability, performance, and durability.
