OMAPL137DZKB4 - Texas Instruments

OMAPL137DZKB4 Details

• Manufacturer Part Number:

  OMAPL137DZKB4

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Philippines

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.75

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Address Bus Width:

  15

• Barrel Shifter:

  NO

• Bit Size:

  16

• Boundary Scan:

  YES

• Clock Frequency-Max:

  30 MHz

• External Data Bus Width:

  16

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• Internal Bus Architecture:

  SINGLE

• JESD-30 Code:

  S-PBGA-B256

• JESD-609 Code:

  e1

• Length:

  17 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  40

• Number of Terminals:

  256

• Number of Timers:

  3

• On Chip Data RAM Width:

  8

• Package Body Material:

  PLASTIC/EPOXY

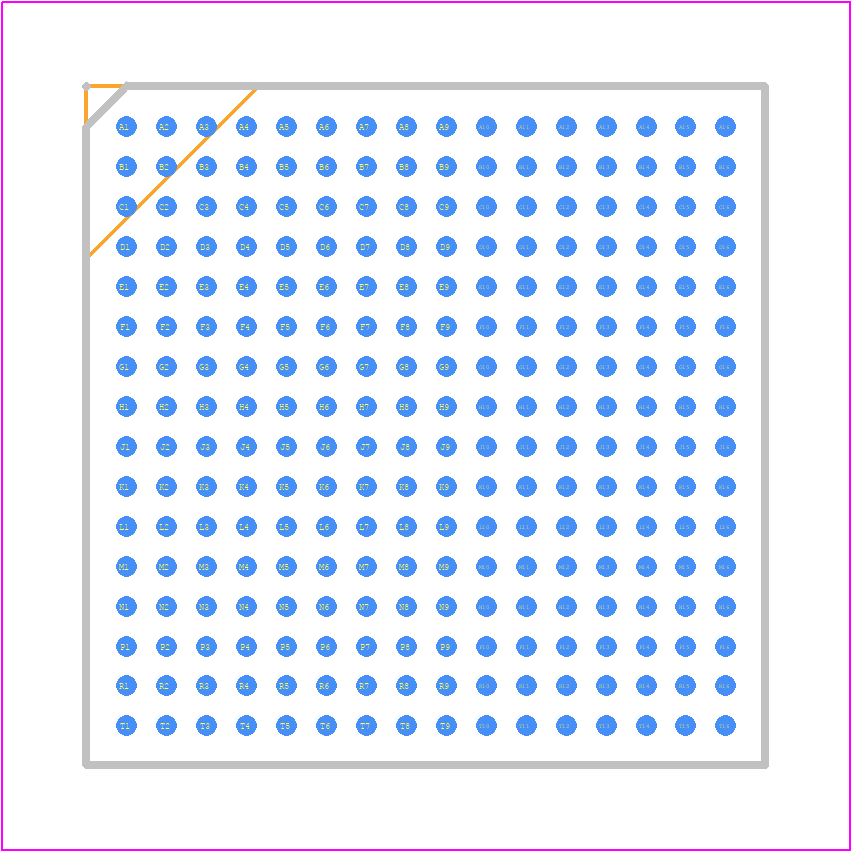

• Package Code:

  BGA

• Package Equivalence Code:

  BGA256,16X16,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (words):

  499712

• Seated Height-Max:

  2.05 mm

• Speed:

  456 MHz

• Supply Voltage-Max:

  1.35 V

• Supply Voltage-Min:

  1.25 V

• Supply Voltage-Nom:

  1.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  17 mm

• uPs/uCs/Peripheral ICs Type:

  SoC
