ONET1141LRGET - Texas Instruments

Description: 11.3-Gbps modulator driver

Download ONET1141LRGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

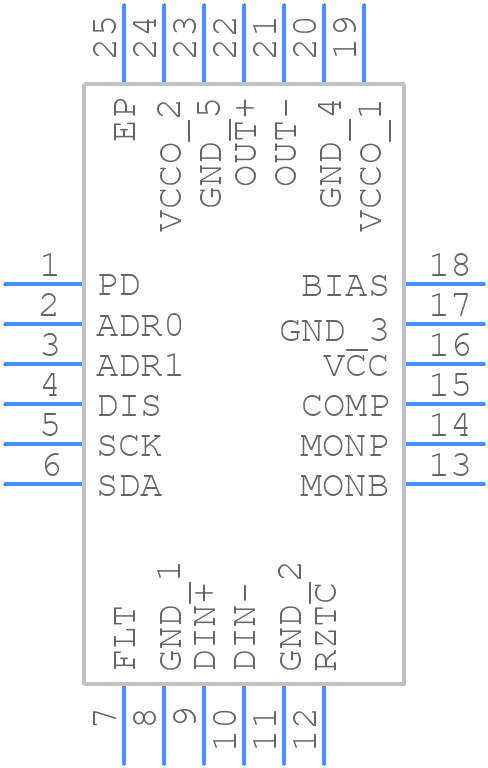

ONET1141LRGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ONET1141LRGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B HEIGHT=1
click to zoom
3D Models
ONET1141LRGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B HEIGHT=1
click to zoom

ONET1141LRGET Details

  • Manufacturer Part Number:

    ONET1141LRGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Applications:

    SDH; SONET

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    170 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ATM/SONET/SDH SUPPORT CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ONET1141LRGET Frequently Asked Questions (FAQs)

  • TI recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a thermal plane on the PCB.
  • Configure the device in low-power mode by setting the appropriate registers, and use the power-down feature when not in use. Additionally, optimize the clock frequency and voltage supply to minimize power consumption.
  • The ONET1141LRGET is rated for operation from -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and reliability.
  • Follow TI's EMC guidelines, use a shielded enclosure, and ensure proper PCB layout and routing to minimize electromagnetic interference. Additionally, use filtering and shielding on I/O lines as necessary.
  • TI recommends using 0.1 μF to 1 μF decoupling capacitors with a voltage rating of 2.5 V or higher, placed as close as possible to the device's power pins.
