ONET4201LDRGET - Texas Instruments

Description: 155-Mbps to 4.25-Gbps laser driver with active back termination

Download ONET4201LDRGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

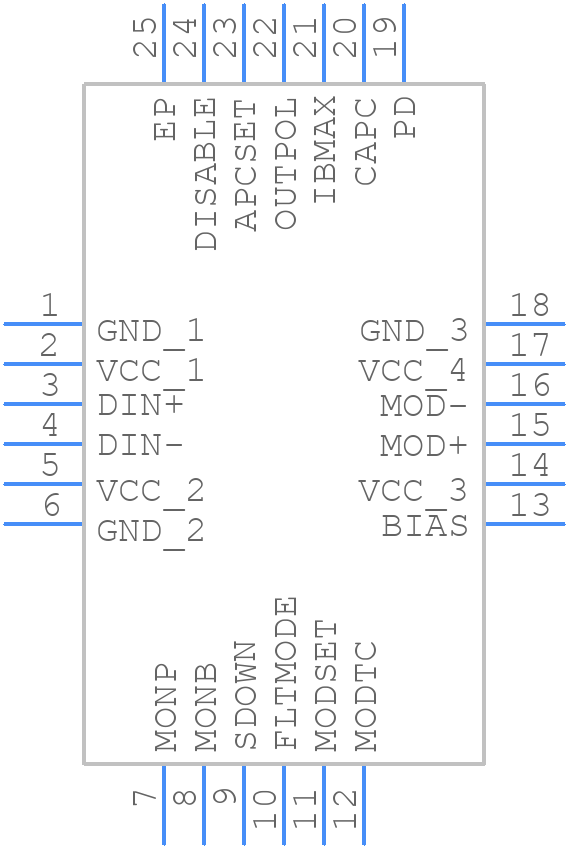

Symbol
ONET4201LDRGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ONET4201LDRGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B
click to zoom
3D Models
ONET4201LDRGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B
click to zoom

ONET4201LDRGET Details

  • Manufacturer Part Number:

    ONET4201LDRGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    24

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    55 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ONET4201LDRGET Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and the use of vias to connect the top and bottom layers to reduce noise and improve signal integrity.
  • Calibration involves adjusting the internal gain and offset registers to match the specific application's requirements. TI provides a calibration procedure in the device's user guide, which involves measuring the output voltage at different light levels and adjusting the registers accordingly.
  • The ONET4201LDRGET can handle ambient light levels up to 100,000 lux, making it suitable for outdoor applications. However, it's essential to ensure proper shielding and filtering to prevent saturation and maintain accurate readings.
  • Yes, the ONET4201LDRGET is compatible with 3.3V microcontrollers. The device's output voltage is ratiometric, meaning it scales with the supply voltage, so it can be easily interfaced with 3.3V microcontrollers.
  • The ONET4201LDRGET's output is a high-impedance node, so it's essential to use a low-pass filter or a capacitor to filter out noise and reduce the output impedance. TI recommends a 1-10uF capacitor in parallel with a 1kΩ resistor to filter out high-frequency noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ONET4201LDRGET Overview

Use the download button to access the ONET4201LDRGET schematic symbol, PCB footprint, and 3D model.
