ONET8501PRGTT - Texas Instruments

Description: Rate Selectable Limiting Amplifier 16-Pin VQFN EP T/R

Download ONET8501PRGTT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

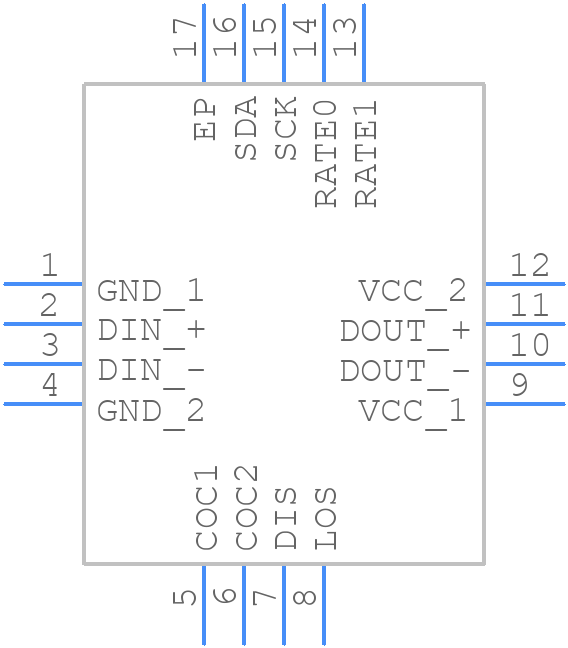

ONET8501PRGTT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ONET8501PRGTT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016C height=1
click to zoom
3D Models
ONET8501PRGTT - Texas Instruments - 3D model - Quad Flat No-Lead - RGT0016C height=1
click to zoom

ONET8501PRGTT Details

  • Manufacturer Part Number:

    ONET8501PRGTT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    11300000 Mbps

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    61 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ONET8501PRGTT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guide in their application note SLUA623. It's essential to follow these guidelines to ensure optimal performance, reduce thermal issues, and prevent damage to the device.
  • The ONET8501PRGTT has several low-power modes, including sleep, hibernate, and shutdown. Configuration is done through the Power Management Registers (PMR). Refer to the device's technical reference manual (TRM) for detailed information on power-saving features and configuration.
  • Texas Instruments provides EMI and EMC guidelines in their application note SLAA644. It's crucial to follow these guidelines to ensure compliance with regulatory requirements and prevent electromagnetic interference with other devices.
  • The device supports secure boot and firmware updates through its built-in security features, such as the Secure Boot Loader (SBL) and the Firmware Update and Authentication Module (FUAM). Refer to the device's TRM and security documentation for implementation details.
  • Texas Instruments offers a range of debugging and development tools, including the Code Composer Studio (CCS) integrated development environment, the XDS560v2 emulator, and the TI-RTOS kernel. These tools provide a comprehensive development environment for the ONET8501PRGTT.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ONET8501PRGTT Overview

Use the download button to access the ONET8501PRGTT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ONET8, or try a keyword search, such as Other Telecom ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
