For optimal performance, it is recommended to follow a star-ground layout, keep the input and output traces short and away from noise sources, and use a solid ground plane. Additionally, decoupling capacitors should be placed close to the power pins, and the device should be operated within its recommended operating conditions.
The OPA134UAE4 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat, and storing the device in an anti-static bag or container.
The maximum power dissipation of the OPA134UAE4 is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance of the package.
The OPA134UAE4 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It is recommended to derate the device's power dissipation and operating conditions when operating at high temperatures, and to ensure that the device is properly heat-sinked.
The selection of input and output capacitors depends on the specific application and frequency range of operation. In general, it is recommended to use low-ESR capacitors with a value of 10nF to 100nF for input and output decoupling, and to ensure that the capacitors are rated for the maximum voltage and current of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA134UAE4 Overview

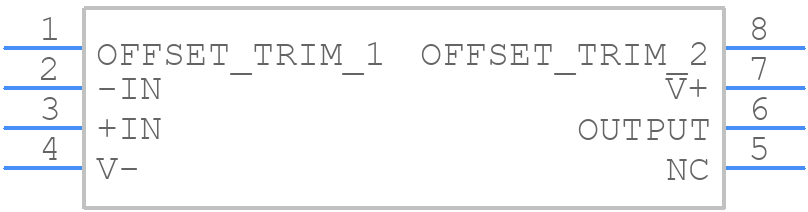

Use the download button to access the OPA134UAE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA13,
or try a keyword search, such as Operational Amplifiers
