Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, it's essential to follow good PCB design practices, such as minimizing noise coupling, using a solid ground plane, and keeping signal traces short and direct.
The choice of input and output capacitors depends on the specific application and frequency range. As a general rule, use low-ESR capacitors with a value between 10nF to 100nF for input decoupling, and 10uF to 100uF for output filtering. The datasheet provides more detailed guidance on capacitor selection.
The maximum power dissipation for the OPA177GS/2K5E4 is 670mW, which is calculated based on the maximum junction temperature (150°C) and the thermal resistance (θJA) of the package. It's essential to ensure that the device operates within the recommended power dissipation limits to prevent overheating and ensure reliability.
The OPA177GS/2K5E4 is rated for operation up to 125°C, but it's essential to consider the device's thermal characteristics and ensure that it operates within the recommended temperature range. Additionally, the device's performance may degrade at high temperatures, so it's crucial to evaluate its behavior under the specific operating conditions.
To troubleshoot common issues with the OPA177GS/2K5E4, start by reviewing the datasheet and application notes. Check the PCB layout, component values, and signal integrity. Use oscilloscopes and signal analyzers to identify the source of the issue. Consult the Texas Instruments support resources, such as the E2E forum, for guidance on specific problems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA177GS/2K5E4 Overview

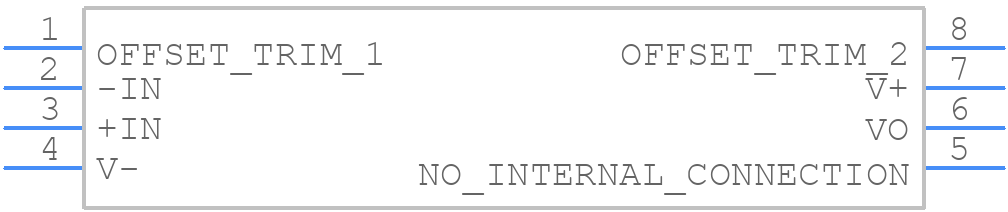

Use the download button to access the OPA177GS/2K5E4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA17,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
