Texas Instruments recommends following a star-ground layout, with the op-amp's ground pin connected to a central ground point. Additionally, keep the input and output traces short and away from noise sources, and use a solid ground plane to reduce electromagnetic interference.
The gain resistors should be chosen based on the desired gain and bandwidth of the amplifier. A higher gain requires smaller resistors, while a lower gain requires larger resistors. Texas Instruments provides a gain resistor calculator tool to help with this selection.
The maximum power dissipation of the OPA177GS/2K5G4 is 670mW. To ensure it doesn't overheat, ensure good airflow around the device, use a heat sink if necessary, and keep the ambient temperature below 85°C. Also, calculate the power dissipation using the formula Pd = (Vcc x Icc) + (Vout x Iout) and ensure it's within the recommended limit.
Yes, the OPA177GS/2K5G4 can be used as a unity-gain buffer. However, ensure that the input impedance is high enough to avoid loading the source, and the output impedance is low enough to drive the load. Also, consider the op-amp's input bias current and offset voltage, which can affect the output voltage.
To troubleshoot oscillations or instability issues, check the PCB layout for noise and signal integrity issues, ensure the power supply is clean and well-regulated, and verify that the gain and bandwidth are within the recommended specifications. Also, check for capacitive loading on the output, and consider adding a small capacitor in parallel with the feedback resistor to improve stability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA177GS/2K5G4 Overview

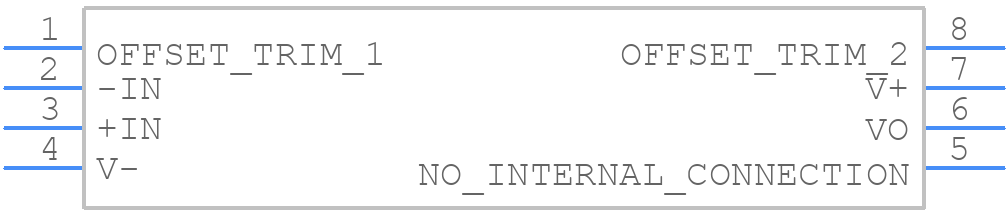

Use the download button to access the OPA177GS/2K5G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA17,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
