Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, it's essential to follow good PCB design practices, such as minimizing noise coupling, using a solid ground plane, and keeping signal traces short and direct.
The gain resistors (Rf and Rg) should be chosen based on the desired gain and bandwidth of the amplifier. A higher gain requires smaller resistors, while a lower gain requires larger resistors. The datasheet provides a gain resistor calculator and a table with recommended resistor values for different gains. Additionally, consider the noise and distortion requirements of your application when selecting the resistors.
The maximum power dissipation of the OPA2107AUE4 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's essential to calculate the power dissipation based on the specific application and ensure that the device operates within the recommended operating conditions.
Yes, the OPA2107AUE4 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to avoid loading the source, and the output impedance is low enough to drive the load. Additionally, consider the noise and distortion requirements of your application, as the OPA2107AUE4 may not be the best choice for very low-noise or high-fidelity applications.
The OPA2107AUE4 has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent ESD damage. Use an ESD wrist strap or mat, and ensure that the PCB is properly grounded during assembly. Additionally, consider adding external ESD protection devices, such as TVS diodes or ESD arrays, to protect the device from external ESD events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2107AUE4 Overview

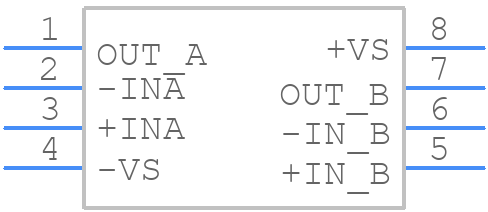

Use the download button to access the OPA2107AUE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA21,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
