Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and decoupling capacitors. Additionally, it's recommended to use a symmetrical layout, keep the input and output traces short, and avoid running digital signals near the op-amp.
The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements. TI provides a gain resistor calculator tool on their website, which can help determine the optimal resistor values. Additionally, the datasheet provides guidelines for selecting gain resistors based on the op-amp's gain-bandwidth product.
The maximum power dissipation for the OPA2310IDSGR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C, but this can be derated to 0.7W at 85°C. It's essential to ensure that the device operates within the recommended power dissipation limits to prevent overheating and damage.
The OPA2310IDSGR is rated for operation from -40°C to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the device is properly derated for power dissipation and that the PCB is designed to handle the increased temperatures. Additionally, the device's performance may degrade at high temperatures, so it's recommended to consult the datasheet for specific guidance.
The OPA2310IDSGR has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent damage. This includes using anti-static wrist straps, mats, and bags, as well as ensuring that the PCB is properly grounded during assembly. Additionally, it's recommended to add external ESD protection devices, such as TVS diodes, to protect the op-amp from external ESD events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2310IDSGR Overview

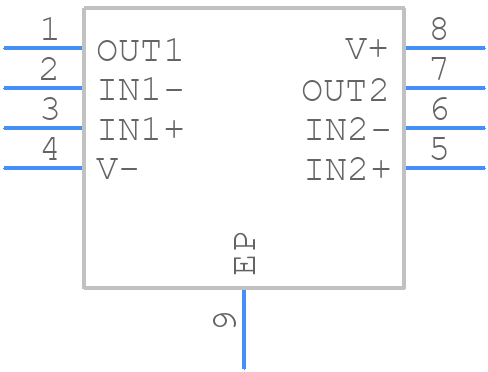

Use the download button to access the OPA2310IDSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA23,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
