Texas Instruments provides a recommended PCB layout in the OPA2334AIDGSR datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, TI recommends using a 4-layer PCB with a solid ground plane to minimize noise and EMI.
The OPA2334AIDGSR has built-in ESD protection, but it's still important to follow proper handling and storage procedures to prevent damage. Use an anti-static wrist strap or mat when handling the device, and store it in an anti-static bag or container. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the PCB design.
The maximum power dissipation of OPA2334AIDGSR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 500mW at 25°C. However, this value can be derated based on the operating temperature and the thermal resistance of the package. Consult the datasheet for more information.
The OPA2334AIDGSR is rated for operation from -40°C to 125°C, but its performance may degrade at high temperatures. Consult the datasheet for temperature-related specifications, such as offset voltage and gain bandwidth, to ensure the device meets your requirements. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to keep the device within its operating temperature range.
The selection of input and output capacitors for OPA2334AIDGSR depends on the specific application requirements, such as frequency response, noise filtering, and stability. Consult the datasheet for recommended capacitor values and types, and consider using X7R or X5R ceramic capacitors for their stability and low ESR. Additionally, use a capacitor selection tool or consult with a capacitor manufacturer for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2334AIDGSR Overview

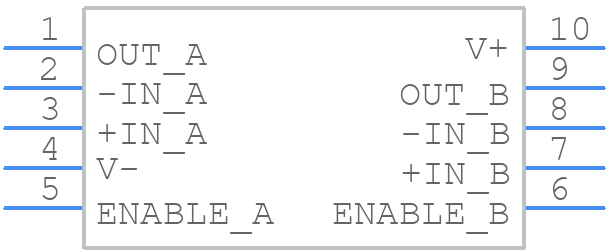

Use the download button to access the OPA2334AIDGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA23,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
