OPA2336EA - Texas Instruments

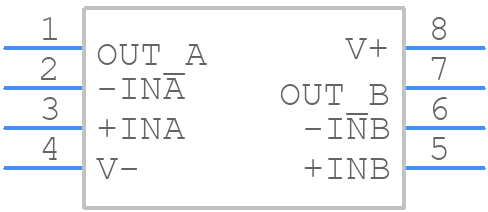

OPA2336EA Details

• Manufacturer Part Number:

  OPA2336EA

• Part Life Cycle Code:

  Obsolete

• Package Description:

  PLASTIC, MSOP-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.00006 µA

• Bias Current-Max (IIB) @25C:

  0.00001 µA

• Common-mode Reject Ratio-Min:

  74 dB

• Common-mode Reject Ratio-Nom:

  86 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  500 µV

• JESD-30 Code:

  S-PDSO-G8

• JESD-609 Code:

  e4

• Length:

  3 mm

• Low-Bias:

  YES

• Low-Offset:

  YES

• Micropower:

  YES

• Number of Functions:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP8,.19

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Packing Method:

  TR

• Power:

  NO

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.1 mm

• Slew Rate-Nom:

  0.03 V/us

• Supply Current-Max:

  0.068 mA

• Supply Voltage Limit-Max:

  7.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Unity Gain BW-Nom:

  100

• Voltage Gain-Min:

  31600

• Wideband:

  NO

• Width:

  3 mm
