The maximum power dissipation of the OPA234U is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
To ensure stability in a unity-gain configuration, it's recommended to add a capacitor (typically 10-22pF) between the output and the inverting input to compensate for the op-amp's internal capacitance and prevent oscillations.
To minimize noise and EMI, it's recommended to keep the input and output traces short and away from each other, use a ground plane, and avoid running sensitive traces near the op-amp's power pins. Additionally, decoupling capacitors should be placed close to the op-amp's power pins.
The OPA234U is rated for operation up to 125°C, but its performance may degrade at higher temperatures. If you need to operate the op-amp in a high-temperature environment, consider using a thermally-enhanced package or a different op-amp specifically designed for high-temperature operation.
When choosing resistors for the feedback network, consider the op-amp's input impedance, output impedance, and desired gain. A good starting point is to use 1% or 0.1% tolerance resistors with a value between 1kΩ and 100kΩ, depending on the specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA234U Overview

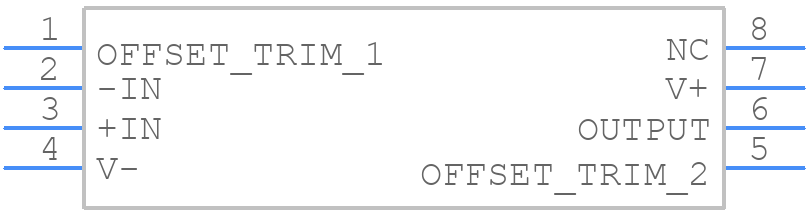

Use the download button to access the OPA234U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA23,
or try a keyword search, such as Operational Amplifiers
