Texas Instruments provides a recommended PCB layout in the OPA2607 datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, TI recommends using a 4-layer PCB with a solid ground plane to minimize noise and EMI.
The OPA2607QDGKRQ1 requires a dual supply voltage (±VCC) and a common-mode voltage (VCM) to operate. Ensure that the supply voltage is within the recommended range (±2.5V to ±5.5V) and that the common-mode voltage is set to the desired level (typically VCC/2). Also, ensure that the input signals are within the common-mode range to avoid clipping or distortion.
The OPA2607QDGKRQ1 can drive capacitive loads up to 100nF without oscillation or instability. However, it's recommended to use a series resistor (Rs) to limit the capacitive load and prevent oscillation. The value of Rs depends on the capacitive load and the desired frequency response.
To reduce noise and EMI, use a low-noise power supply, decouple the power supply lines with capacitors, and use a ground plane on the PCB. Additionally, use shielding or guard rings around the op-amp inputs to reduce electromagnetic interference. Also, consider using a low-pass filter or a ferrite bead to filter out high-frequency noise.
The OPA2607QDGKRQ1 has a thermal derating of 13.9mW/°C above 25°C. This means that the maximum power dissipation decreases by 13.9mW for every degree Celsius above 25°C. Ensure that the device is properly heat-sinked and that the ambient temperature is within the recommended range to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2607QDGKRQ1 Overview

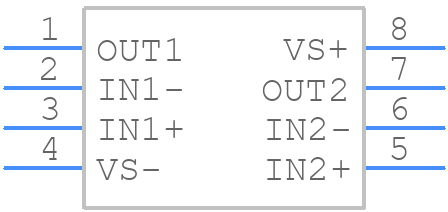

Use the download button to access the OPA2607QDGKRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA26,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
