TI recommends a star-ground layout, with the op-amp's ground pin connected to a central ground point, and the use of separate analog and digital grounds to minimize noise coupling. Additionally, keep the input and output traces short and away from each other to reduce capacitive coupling.
The output capacitor should be chosen based on the desired closed-loop bandwidth and stability. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF, and a voltage rating that exceeds the maximum output voltage of the op-amp. TI also provides a capacitor selection guide in the datasheet.
The maximum power dissipation of the OPA2674I-14D is 1.4W. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
Yes, the OPA2674I-14D can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to avoid loading the source, and that the output impedance is low enough to drive the load. Additionally, consider the op-amp's bandwidth and slew rate to ensure they meet the requirements of the application.
To protect the OPA2674I-14D from input overvoltage, use input clamping diodes or a voltage limiter circuit to limit the input voltage to within the op-amp's absolute maximum ratings. Additionally, consider using a series resistor to limit the input current and prevent damage to the op-amp.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2674I-14D Overview

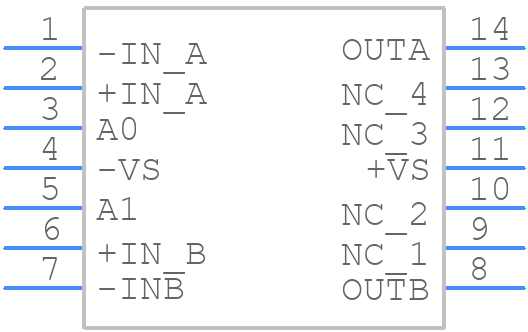

Use the download button to access the OPA2674I-14D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA26,
or try a keyword search, such as Operational Amplifiers
