For optimal performance, it is recommended to follow a star-ground layout, keep the input and output traces short and away from each other, and use a solid ground plane. Additionally, decoupling capacitors should be placed close to the power pins, and the device should be placed away from high-current or high-voltage traces.
To minimize high-frequency noise and oscillations, ensure that the circuit is properly bypassed, and the op-amp is operated within its recommended frequency range. Additionally, consider adding a small capacitor (e.g., 10-100 pF) in parallel with the feedback resistor to reduce high-frequency gain and prevent oscillations.
The maximum power dissipation of the OPA2683ID is dependent on the ambient temperature and the package type. For the SOIC package, the maximum power dissipation is approximately 1.4 W at 25°C. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
Yes, the OPA2683ID can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to prevent loading the source, and the output impedance is low enough to drive the load. Additionally, consider the op-amp's bandwidth and slew rate to ensure they meet the requirements of the application.
When selecting feedback resistors, consider the desired gain, bandwidth, and noise requirements. A good starting point is to use a feedback resistor value between 1 kΩ and 100 kΩ. The ratio of the feedback resistor to the input resistor determines the gain, and the total resistance value affects the noise and bandwidth. Use the op-amp's datasheet and application notes to guide your selection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2683ID Overview

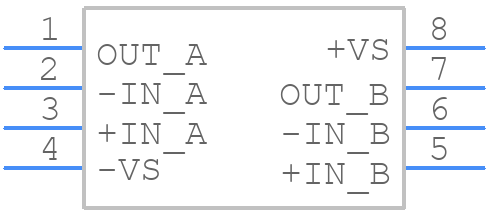

Use the download button to access the OPA2683ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA26,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
