A good PCB layout for OPA2694ID involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the power pins. TI provides a recommended layout in the datasheet and in application notes such as SLAA523.
The choice of gain resistors depends on the desired gain, bandwidth, and noise performance. TI provides a gain resistor calculator tool on their website, and the datasheet provides guidelines for selecting gain resistors. A good starting point is to use the recommended values in the datasheet and then adjust based on simulation and measurement results.
The maximum power dissipation of OPA2694ID is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this can be derated based on the thermal resistance of the package and the ambient temperature. TI provides a thermal calculator tool on their website to help estimate the maximum power dissipation.
OPA2694ID is specified to operate from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. TI provides a temperature derating chart in the datasheet to help estimate the device's performance at high temperatures. It's recommended to perform thorough testing and validation before using the device in a high-temperature environment.
Oscillations or instability issues with OPA2694ID can be caused by a variety of factors, including poor PCB layout, inadequate decoupling, or incorrect gain resistor selection. To troubleshoot, start by checking the PCB layout and decoupling, and then use simulation tools such as SPICE or TI's TINA-TI to model the circuit and identify potential issues. TI also provides application notes and technical articles on troubleshooting op-amp oscillations.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
OPA2694ID Overview

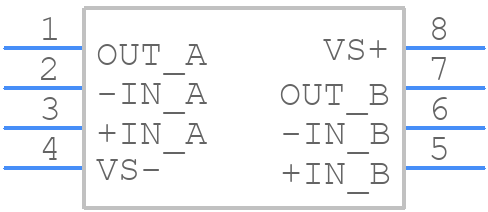

Use the download button to access the OPA2694ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA26,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
