A good PCB layout for OPA2822E/250 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the power pins. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure stability, use a gain resistor (Rg) that is at least 10 times the value of the feedback resistor (Rf). Also, ensure that the capacitive load is limited to 10pF or less, and use a compensation capacitor (Cc) if necessary.
The maximum power dissipation of OPA2822E/250 is 670mW. However, this can be limited by the thermal resistance of the package and the ambient temperature. It's essential to calculate the power dissipation and ensure it's within the safe operating area.
Yes, OPA2822E/250 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to avoid loading the input signal. A buffer configuration can also be used to improve the output drive capability.
To minimize EMI and RFI, use a shielded enclosure, keep the circuit layout compact, and use a common-mode choke or ferrite beads on the input and output lines. Also, ensure that the power supply is well-regulated and decoupled.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2822E/250 Overview

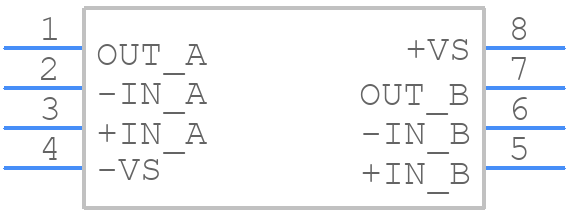

Use the download button to access the OPA2822E/250 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA28,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
