TI recommends a compact, symmetrical layout with the op-amp placed close to the feedback resistors and capacitors. Keep the input and output traces short and away from noise sources. Use a solid ground plane and decouple the power supplies with 0.1uF and 10uF capacitors.
Choose gain resistors based on the desired gain and bandwidth. Higher gain resistors reduce bandwidth, while lower gain resistors increase bandwidth. Use the OPA2832ID's gain-bandwidth product (GBP) to determine the maximum gain and bandwidth for your application. Consult the datasheet's gain-bandwidth graph for guidance.
The OPA2832ID can drive up to 1nF of capacitive load. To stabilize the op-amp with capacitive loads, add a series resistor (Rs) between the output and the capacitive load. The value of Rs depends on the load capacitance and the desired stability margin. Consult the datasheet's capacitive load drive section for guidance.
To reduce noise and oscillations, use a low-noise power supply, decouple the power supplies, and add a noise-reducing capacitor (e.g., 10nF) between the output and the inverting input. Also, ensure the op-amp is properly bypassed and the layout is compact and symmetrical. Consider adding a ferrite bead or a series resistor to the output to reduce oscillations.
The OPA2832ID's input stage can tolerate input common-mode voltages up to 1.2V beyond the power supply rails. However, exceeding this limit can cause damage. To protect the op-amp, use input clamping diodes or a voltage limiter circuit to prevent input overvoltage. Consult the datasheet's input common-mode voltage section for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2832ID Overview

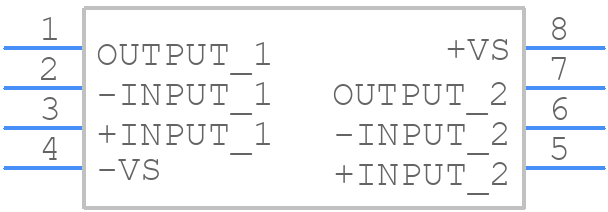

Use the download button to access the OPA2832ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA28,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
