Texas Instruments provides a recommended PCB layout in the OPA2835 datasheet, which includes guidelines for component placement, trace routing, and grounding. Following this layout can help minimize noise, reduce electromagnetic interference (EMI), and ensure optimal performance.
The choice of output filter depends on the specific application requirements, such as the desired frequency response, noise rejection, and output impedance. Texas Instruments provides guidance on output filter design in the OPA2835 datasheet, including recommended component values and topologies.
The maximum power dissipation of the OPA2835IRUNR is dependent on the ambient temperature and the thermal resistance of the package. Texas Instruments provides thermal resistance values in the datasheet, and recommends using thermal design calculations to ensure the device operates within safe temperatures. Additionally, proper PCB design, heat sinking, and airflow can help prevent overheating.
The OPA2835IRUNR is specified to operate from -40°C to 125°C, but its performance may degrade at higher temperatures. Texas Instruments recommends derating the device's power dissipation and ensuring proper thermal management to ensure reliable operation in high-temperature environments.
Texas Instruments provides troubleshooting guidelines in the OPA2835 datasheet, including common causes of oscillation and instability, such as improper output filtering, inadequate power supply decoupling, and incorrect component values. Additionally, using simulation tools and Spice models can help identify and resolve issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2835IRUNR Overview

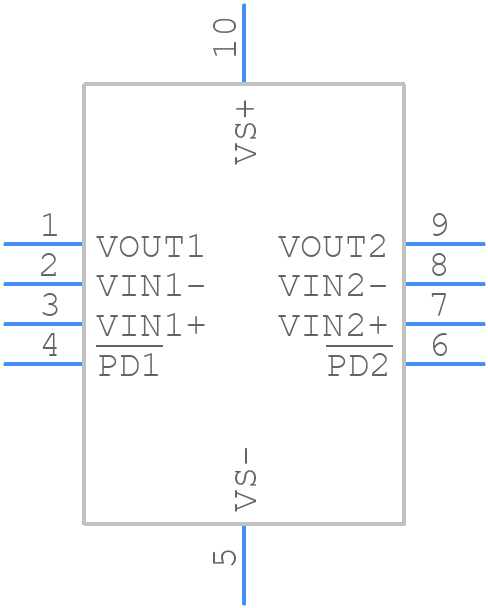

Use the download button to access the OPA2835IRUNR schematic symbol, PCB footprint, and 3D model.
