A good PCB layout for OPA2836IDR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a reference design and layout guidelines in the datasheet and application notes.
The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements. TI provides a gain resistor calculator tool and application notes that can help with selecting the right resistors. Additionally, the datasheet provides guidelines for selecting resistors based on the desired gain and bandwidth.
The maximum power dissipation of OPA2836IDR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this can be derated based on the operating temperature and thermal resistance.
Yes, OPA2836IDR can be used in a single-supply configuration. However, the input common-mode voltage range is limited to VCC-1.5V to VCC+0.5V. Additionally, the output voltage swing is reduced in single-supply operation. TI provides application notes and design guidelines for single-supply operation.
To filter out noise and interference, use a combination of passive and active filtering techniques. Use decoupling capacitors to filter out high-frequency noise, and consider adding a low-pass filter or a notch filter to reject specific frequency bands. Additionally, use shielding and grounding techniques to minimize electromagnetic interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2836IDR Overview

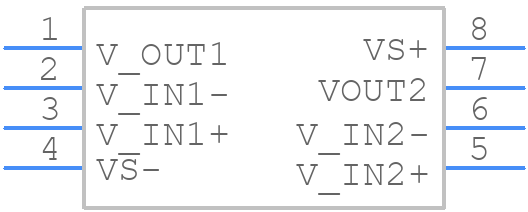

Use the download button to access the OPA2836IDR schematic symbol, PCB footprint, and 3D model.
