Texas Instruments provides a recommended PCB layout in the OPA2837 datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, TI recommends using a 4-layer PCB with a solid ground plane and a separate analog ground plane to minimize noise and interference.
The choice of output filter depends on the specific application requirements. TI recommends using a 2nd-order Butterworth filter with a cutoff frequency of 100 kHz to 1 MHz to reduce noise and ringing. The filter components should be chosen to minimize parasitic inductance and capacitance.
The OPA2837IDGKR can drive capacitive loads up to 1 nF, but it's recommended to limit the load capacitance to 100 pF to ensure stability and prevent oscillations. If a larger capacitive load is required, a series resistor can be added to dampen the load.
To ensure EMC, TI recommends using a shielded enclosure, keeping the OPA2837IDGKR away from noise sources, and using a common-mode choke or ferrite bead on the input and output lines. Additionally, the PCB should be designed with a solid ground plane and a separate analog ground plane to minimize noise and interference.
The OPA2837IDGKR has a thermal derating of 13.9 mW/°C above 25°C. This means that the maximum power dissipation decreases by 13.9 mW for every degree Celsius above 25°C. The device should be operated within the recommended operating temperature range to ensure reliability and performance.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
OPA2837IDGKR Overview

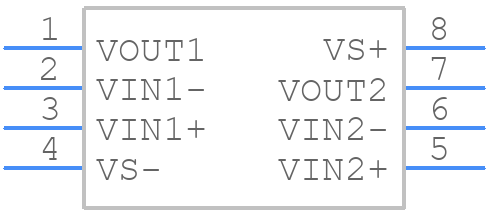

Use the download button to access the OPA2837IDGKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA28,
or try a keyword search, such as Operational Amplifiers
