Texas Instruments recommends following a star-ground layout, keeping the input and output traces short and away from each other, and using a solid ground plane to minimize noise and electromagnetic interference (EMI). Additionally, it's essential to decouple the power supply pins with capacitors and use a low-ESR capacitor for the bypass pin.
The gain resistors (Rf and Rg) should be chosen based on the desired gain and bandwidth requirements. A higher gain requires smaller resistors, but may compromise bandwidth. Texas Instruments provides a gain resistor calculator tool to help with selection. It's essential to consider the resistor's tolerance, temperature coefficient, and parasitic capacitance when selecting the values.
The OPA2863DR can drive a maximum capacitive load of 1nF. Exceeding this limit can cause instability and oscillations. To ensure stability, it's recommended to add a series resistor (Rs) to the output stage to isolate the capacitive load and improve stability. The value of Rs depends on the capacitive load and the desired bandwidth.
To prevent damage or unwanted behavior, it's recommended to sequence the power-on and power-off of the OPA2863DR carefully. The power supply voltage (VCC) should be applied before the input signal, and the input signal should be removed before the power supply voltage is removed. Additionally, it's essential to ensure that the power supply voltage is stable and within the recommended operating range before applying the input signal.
The OPA2863DR has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation over temperature, it's essential to consider the thermal resistance (θJA) of the package, the power dissipation, and the ambient temperature. Texas Instruments provides thermal design guidelines and recommends using a heat sink or thermal pad to reduce the junction temperature and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2863DR Overview

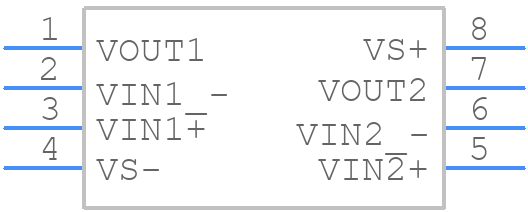

Use the download button to access the OPA2863DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA28,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
