A good PCB layout for OPA2863IDGKR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
The choice of gain resistors depends on the desired gain and bandwidth. A good starting point is to use the recommended values in the datasheet, and then adjust them based on the specific application requirements. It's also important to consider the resistor noise and tolerance.
The maximum power dissipation of OPA2863IDGKR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the actual operating conditions.
Yes, OPA2863IDGKR can be used in a single-supply application. However, it's important to ensure that the input common-mode voltage is within the specified range, and that the output voltage swing is sufficient for the application. A voltage divider or a level-shifting circuit may be required to adjust the input signal.
To filter out noise and oscillations, it's recommended to use a low-pass filter at the input, and a decoupling capacitor at the power supply pin. Additionally, a series resistor and capacitor at the output can help to reduce oscillations. It's also important to ensure that the PCB layout is well-designed and that the device is properly bypassed.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
OPA2863IDGKR Overview

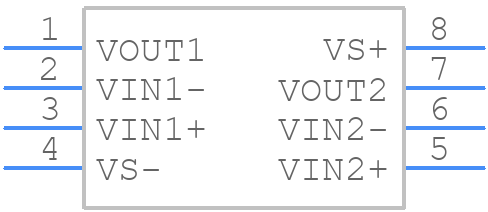

Use the download button to access the OPA2863IDGKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA28,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
