Texas Instruments provides a recommended PCB layout in the OPA2863 datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, TI recommends using a 4-layer PCB with a solid ground plane and a separate analog ground plane to minimize noise and ensure optimal performance.
The output capacitor selection depends on the specific application and requirements. TI recommends using a low-ESR capacitor with a value between 10nF to 100nF. A larger capacitor value can help improve stability, but may also increase the settling time. It's essential to consider the capacitor's ESR, voltage rating, and temperature coefficient when selecting the right capacitor for the OPA2863.
The maximum power dissipation of the OPA2863 depends on the ambient temperature and the package type. For the OPA2863RUNR, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's essential to consider the thermal resistance of the package and the PCB layout to ensure the device operates within the safe operating area.
Yes, the OPA2863 can be used as a unity-gain buffer. However, it's essential to ensure that the input signal is within the common-mode range of the device and that the output is not loaded with a low impedance. Additionally, TI recommends using a feedback resistor to improve stability and reduce noise.
To reduce noise and oscillations in the OPA2863 circuit, TI recommends using a low-noise power supply, decoupling capacitors, and a well-designed PCB layout. Additionally, using a feedback resistor and a compensation capacitor can help improve stability and reduce oscillations. It's also essential to minimize the input capacitance and ensure the input signal is properly terminated.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2863RUNR Overview

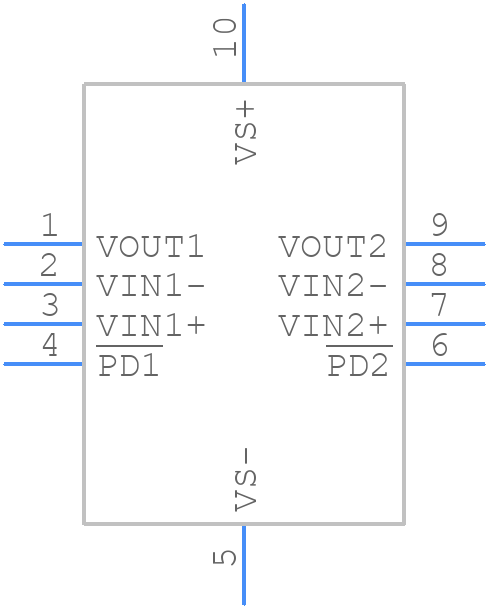

Use the download button to access the OPA2863RUNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA28,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
