A good PCB layout for the OPA2890IDR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the power pins. Additionally, it's recommended to use a symmetrical layout to minimize thermal gradients and to avoid routing high-frequency signals near the op-amp.
The choice of gain resistors depends on the desired gain, bandwidth, and noise performance. A higher gain resistor value will result in higher gain but may also increase noise and reduce bandwidth. TI provides a gain resistor calculator tool to help with the selection. Additionally, it's recommended to use low-tolerance, low-temperature-coefficient resistors to minimize gain drift and noise.
The OPA2890IDR can drive capacitive loads up to 1nF without oscillation, but it's recommended to use a series resistor to dampen the load and ensure stability. The maximum capacitive load depends on the output impedance of the op-amp, the frequency of operation, and the desired phase margin. TI provides a capacitive load drive calculator tool to help with the selection.
The OPA2890IDR has a high bandwidth, which makes it susceptible to high-frequency noise and aliasing. To filter out noise, a low-pass filter can be used, such as an RC filter or an active filter. The recommended filter topology depends on the specific application requirements, but a 2nd-order Butterworth filter is a common choice. TI provides filter design tools and application notes to help with the selection.
The OPA2890IDR has a thermal shutdown temperature of 150°C, which is designed to protect the device from overheating. If the junction temperature exceeds this limit, the device will shut down to prevent damage. To ensure reliability, it's recommended to keep the device within the recommended operating temperature range and to provide adequate heat sinking and thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2890IDR Overview

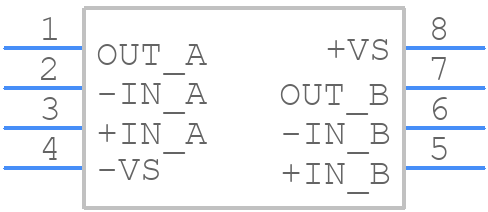

Use the download button to access the OPA2890IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA28,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
