A good PCB layout for OPA349UA involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the power pins. TI provides a recommended layout in the datasheet and application notes.
The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements. TI provides a gain resistor calculator tool and application notes that can help with selecting the right resistors. Additionally, the datasheet provides guidelines for selecting resistors based on the desired gain and bandwidth.
The maximum power dissipation of OPA349UA is dependent on the ambient temperature and the package type. For the UA package, the maximum power dissipation is 500mW at 25°C. However, this can be derated based on the ambient temperature. TI provides a power dissipation calculator tool and thermal resistance data in the datasheet to help with thermal management.
OPA349UA is specified to operate from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. TI provides guidance on operating the device at high temperatures in the datasheet and application notes, including derating the power dissipation and using thermal management techniques.
To protect OPA349UA from EMI, use proper PCB layout techniques, such as keeping sensitive traces away from noisy areas, using shielding, and adding EMI filters. Additionally, use a low-pass filter at the input and output stages to reduce high-frequency noise. TI provides guidance on EMI protection in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA349UA Overview

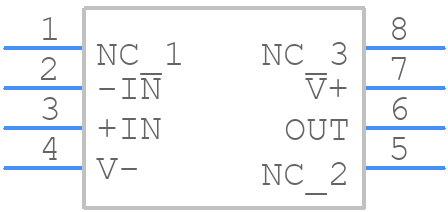

Use the download button to access the OPA349UA schematic symbol, PCB footprint, and 3D model.
