Texas Instruments provides a recommended PCB layout in the OPA363ID datasheet, which includes keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a thermal pad on the bottom of the device to improve heat dissipation.
The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements. A higher gain resistor value will result in higher gain but may also increase noise and reduce bandwidth. TI provides a gain resistor calculator tool to help with the selection. Additionally, it's recommended to use 1% or 0.1% tolerance resistors to minimize gain error.
The maximum power dissipation of OPA363ID is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a power dissipation calculation formula: Pd = (Vcc x Icc) + (Vout x Iout). It's recommended to keep the junction temperature below 150°C to ensure reliable operation.
OPA363ID is specified to operate from -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C. It's recommended to derate the power dissipation and ensure proper heat sinking to prevent thermal shutdown.
To protect OPA363ID from EMI and RFI, it's recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use filtering components such as ferrite beads or common-mode chokes on the input and output lines. Additionally, a low-pass filter can be used to attenuate high-frequency noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA363ID Overview

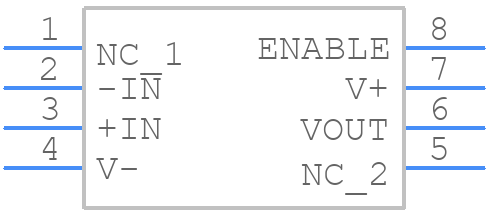

Use the download button to access the OPA363ID schematic symbol, PCB footprint, and 3D model.
