OPA3684ID - Texas Instruments

Description: Low-Power, Triple Current Feedback Operational Amplifier with Disable

Download OPA3684ID Model

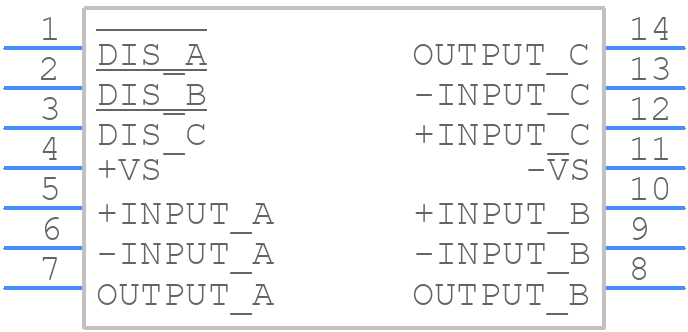

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OPA3684ID - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (-R-PDSO-G14)
click to zoom
3D Models
OPA3684ID - Texas Instruments  - 3D model - Small Outline Packages - D (-R-PDSO-G14)
click to zoom

OPA3684ID Details

  • Manufacturer Part Number:

    OPA3684ID

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CURRENT-FEEDBACK

  • Average Bias Current-Max (IIB):

    10 µA

  • Bandwidth (3dB)-Nom:

    210 MHz

  • Bias Current-Max (IIB) @25C:

    10 µA

  • Common-mode Reject Ratio-Min:

    53 dB

  • Common-mode Reject Ratio-Nom:

    60 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -6.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    3

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    285 V/us

  • Slew Rate-Nom:

    820 V/us

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    210000

  • Wideband:

    YES

  • Width:

    3.9 mm

OPA3684ID Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the OPA3684ID datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the signal traces short, using a solid ground plane, and minimizing parasitic inductance and capacitance.
  • The choice of input and output capacitors depends on the specific application and frequency range. In general, X7R or X5R ceramic capacitors with a value of 10nF to 100nF are suitable for most applications. It's also important to consider the capacitor's voltage rating, ESR, and ESL.
  • The maximum power dissipation of OPA3684ID is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a formula to calculate the maximum power dissipation, which is Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended compensation network and component values provided in the datasheet. Additionally, the PCB layout should be designed to minimize parasitic inductance and capacitance, and the input and output impedances should be matched to the amplifier's input and output impedances.
  • The recommended voltage supply sequence for OPA3684ID is to apply the power supplies (V+ and V-) simultaneously, and to ensure that the voltage difference between V+ and V- does not exceed the maximum rating. This helps to prevent damage to the device and ensures proper operation.
