A good PCB layout for OPA3691IDBQT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
The choice of gain resistors depends on the desired gain and bandwidth. A good starting point is to use the gain resistor values recommended in the datasheet. For custom gains, use the gain equation provided in the datasheet and choose resistors with 1% tolerance or better.
The maximum power dissipation of OPA3691IDBQT is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this can be derated for higher ambient temperatures.
Yes, OPA3691IDBQT can be used in a single-supply configuration. However, the input common-mode voltage range is limited to VCC-1.5V to VCC+0.5V. For single-supply operation, ensure that the input signal is within this range to maintain optimal performance.
To filter out noise and oscillations, use a combination of decoupling capacitors, series resistors, and ferrite beads. Additionally, ensure that the PCB layout is well-designed, and the device is properly bypassed. In some cases, adding a noise filter or a low-pass filter may be necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA3691IDBQT Overview

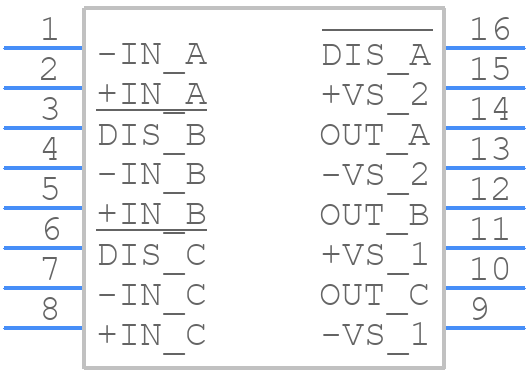

Use the download button to access the OPA3691IDBQT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA36,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
