A good PCB layout for OPA3692IDBQT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure stability, ensure that the gain-setting resistors are properly matched, and the capacitive load is minimized. Also, add a small capacitor (e.g., 10pF) in parallel with the feedback resistor to improve stability.
The maximum power dissipation of OPA3692IDBQT is 750mW. To calculate it, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
Yes, OPA3692IDBQT is rated for operation from -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
To protect OPA3692IDBQT from EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input and output lines.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
OPA3692IDBQT Overview

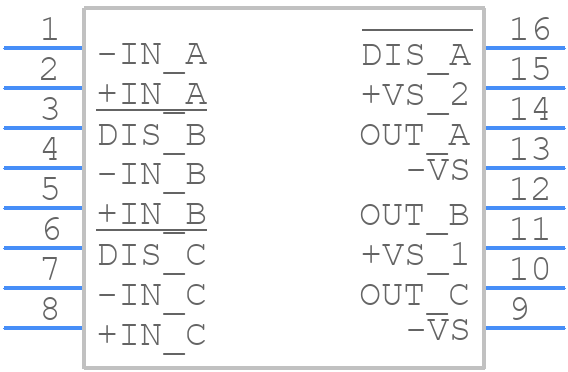

Use the download button to access the OPA3692IDBQT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA36,
or try a keyword search, such as Buffer Amplifiers
