Texas Instruments provides a recommended PCB layout in the OPA3693 datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, TI recommends using a 4-layer PCB with a solid ground plane and a separate analog ground plane to minimize noise and interference.
To ensure stability, follow the recommended compensation network and component values provided in the datasheet. Additionally, ensure that the circuit layout is well-designed, with minimal parasitic capacitance and inductance. Also, consider using a low-ESR capacitor for the power supply decoupling.
The maximum power dissipation of OPA3693IDBQR is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a formula to calculate the maximum power dissipation, which is Pd(max) = (TJ(max) - TA) / θJA, where TJ(max) is the maximum junction temperature, TA is the ambient temperature, and θJA is the thermal resistance.
The OPA3693IDBQR is specified to operate from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures. TI recommends derating the power supply voltage and output current at higher temperatures to ensure reliable operation.
The OPA3693IDBQR has built-in ESD protection, but additional protection measures can be taken to ensure robustness. Use TVS diodes or ESD protection devices on the input and output pins, and consider adding overvoltage protection circuits to prevent damage from voltage transients.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA3693IDBQR Overview

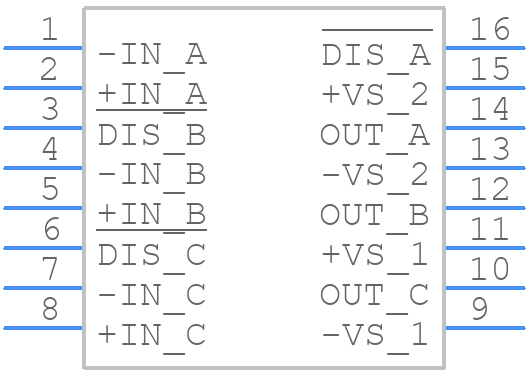

Use the download button to access the OPA3693IDBQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA36,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
