A good PCB layout for OPA37GU/2K5 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure stability, ensure that the gain is set to a value that does not exceed the recommended maximum gain, and that the feedback network is properly designed to minimize phase shift. Additionally, use a compensation capacitor if necessary, and ensure that the output is properly terminated.
A 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed close to the device, is recommended for power supply decoupling. This helps to filter out high-frequency noise and ensure stable operation.
To protect OPA37GU/2K5 from ESD damage, use ESD protection devices such as TVS diodes or ESD protection arrays on the input and output pins. Additionally, handle the device by the body, not the pins, and use an anti-static wrist strap or mat when handling the device.
To ensure proper thermal management, ensure that the device is mounted on a PCB with a good thermal conductivity, and that there is adequate airflow around the device. A thermal pad or heat sink may be necessary for high-power applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA37GU/2K5 Overview

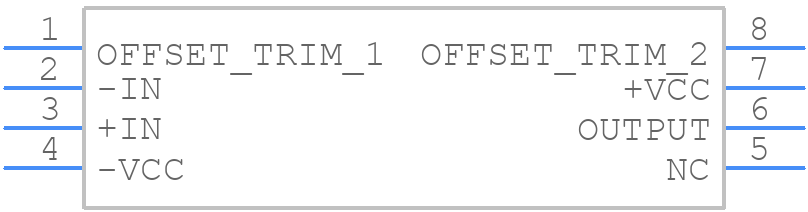

Use the download button to access the OPA37GU/2K5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA37,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
