Texas Instruments provides a recommended PCB layout in the OPA3875 datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, TI recommends using a 4-layer PCB with a solid ground plane and a separate analog ground plane to minimize noise and interference.
To ensure stability, follow the recommended compensation network in the datasheet, and make sure to use a capacitor with a low equivalent series resistance (ESR) and a high-quality ceramic capacitor for the bypass capacitor. Additionally, keep the input and output traces short and away from noise sources, and use a low-impedance output load.
The maximum power dissipation of OPA3875IDBQ is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the operating temperature and the thermal resistance of the PCB.
Yes, OPA3875IDBQ is specified to operate from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to consult the datasheet for temperature-related specifications and to consider derating the power dissipation and operating conditions for high-temperature applications.
To protect OPA3875IDBQ from ESD and overvoltage, use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins. Additionally, use a voltage regulator or a voltage limiter to prevent overvoltage conditions. It's also recommended to follow proper handling and storage procedures to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA3875IDBQ Overview

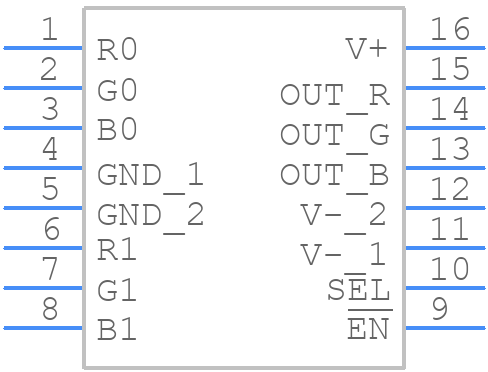

Use the download button to access the OPA3875IDBQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA38,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
