Texas Instruments provides a recommended PCB layout in the OPA3S328RGRT datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding noise coupling.
To ensure stability, follow the recommended compensation network values and component placement in the datasheet. Additionally, consider the amplifier's gain-bandwidth product, phase margin, and output impedance. You can also use simulation tools like SPICE or TI's TINA-TI to model and optimize your circuit.
The maximum power dissipation for the OPA3S328RGRT is dependent on the ambient temperature and package type. You can calculate the maximum power dissipation using the formula: Pd = (Vcc x Icc) + (Vout x Iout). Ensure that your design stays within the recommended operating conditions to prevent overheating and damage.
Choose input and output capacitors with low equivalent series resistance (ESR) and high capacitance values to ensure stability and minimize noise. The datasheet recommends using 10nF to 100nF capacitors for input and output decoupling. Consider the capacitor's voltage rating, temperature coefficient, and physical size when selecting components.
The recommended operating voltage range for the OPA3S328RGRT is 2.2V to 5.5V. Operating outside this range may affect the amplifier's performance, including gain, bandwidth, and distortion. Ensure that your power supply voltage is within the recommended range to maintain optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA3S328RGRT Overview

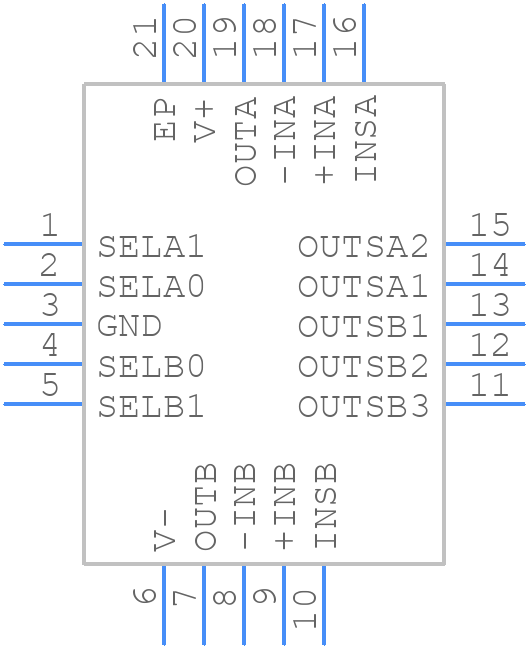

Use the download button to access the OPA3S328RGRT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA3S,
or try a keyword search, such as Operational Amplifiers
